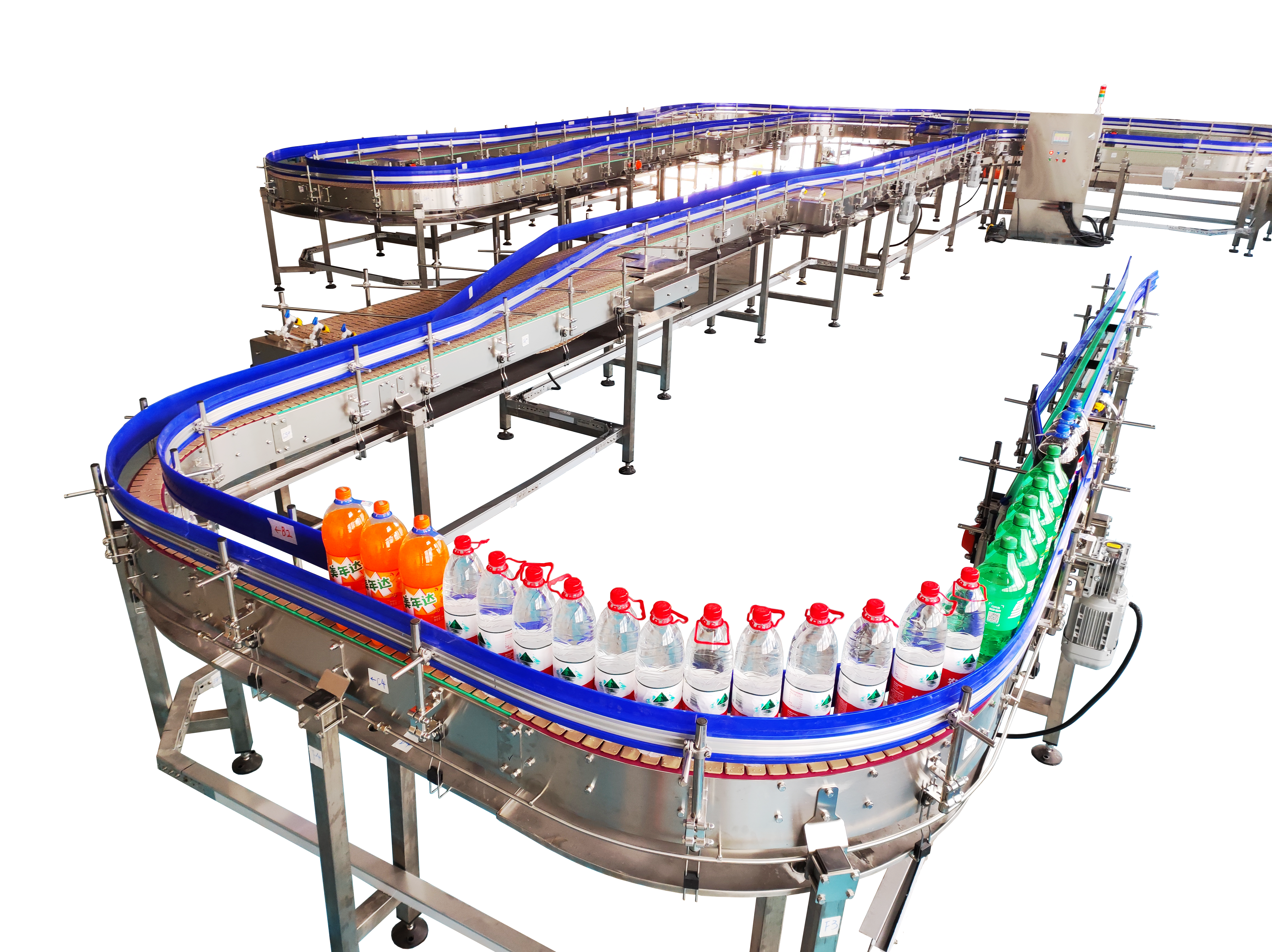

PET Bottles Filling Conveyor System
The PET bottle filling conveyor system is specifically designed for beverage filling and packaging production lines. This system can seamlessly connect PET bottles to subsequent packaging equipment such as labelers and shrink-wrapping machines, after the filling process. It is also applicable to the transportation of glass bottles or other rigid containers. The system adopts advanced automation technology to ensure efficient and stable bottle transportation, meeting the requirements of modern beverage production lines.
SmartConvey
Application Areas
Suitable for the post-filling transportation, labeling, and packaging processes of various beverages such as carbonated drinks, fruit juices, purified water, and tea drinks.
Highly Efficient Automation
Stepless speed control for seamless adjustment to varying production needs.
Stable & Reliable Performance
Anti-bottle-tipping design ensures smooth and steady bottle transport.
Intelligent Control System
Automated monitoring and quick response with photoelectric sensors and PLC.
Hygienic & Clean Design
Meets food-grade standards with CIP for efficient in-line cleaning.
This system is ideal for a range of industries, including beverages (carbonated drinks, juices, water, tea), food (seasonings, edible oils), pharmaceuticals (oral liquids, medicines), and daily chemicals (cosmetics, detergents), ensuring efficient, automated transportation and packaging across diverse product lines.
Design

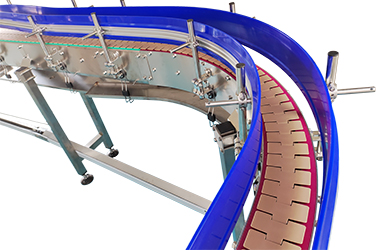

High-Quality Chain Plate: Durable POM material (880TAB-K325) ensures smooth and reliable conveyor operation.

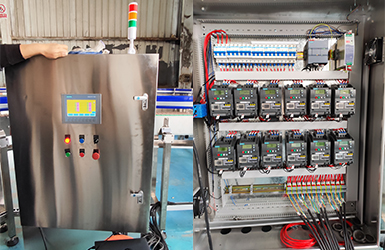

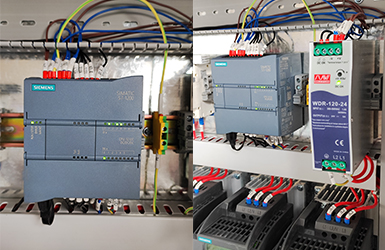

Advanced Electrical Components: 12 motors, 12 frequency converters, and a PLC system for unified control and optimized performance.
Flexible PLC Modes: Manual and Auto modes allow easy speed adjustment and automated operation for different production needs.

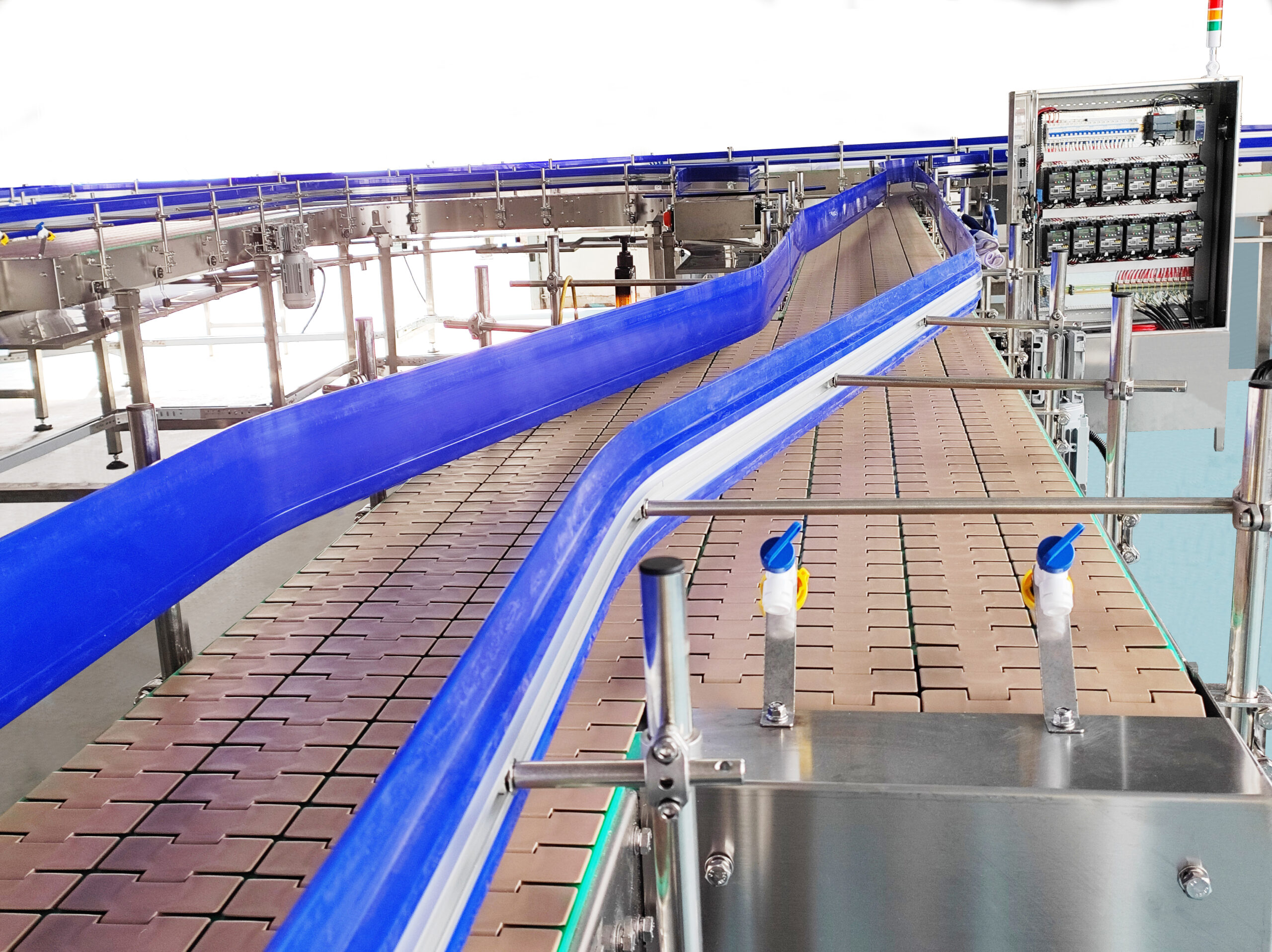

Multi-Lane Chain Plate Design:
Efficient, no-pressure system prevents damage to fragile bottles and enhances operational stability.

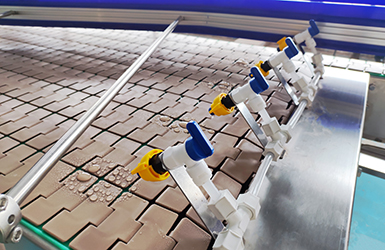

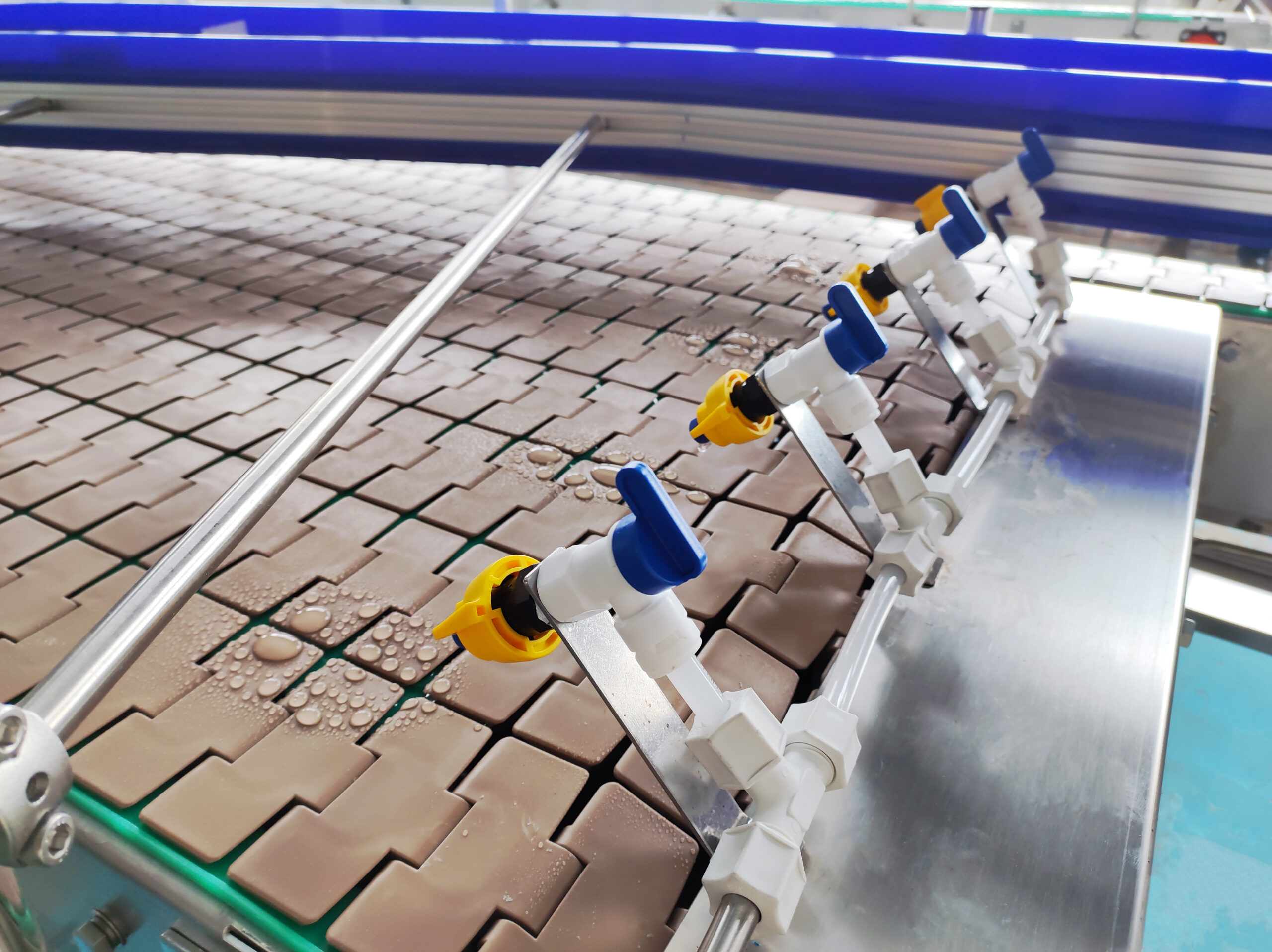

Dry Lubrication System:Keeps the conveyor dry and minimizes maintenance with automatic dry lubrication for long lines.

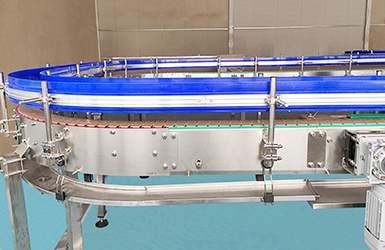

Food-Grade Water Tank & Drainage Trays: Corrosion-resistant SS304 material prevents contamination and extends conveyor lifespan in beverage lines.
| Chain Conveyor | Details |
| Chain Type | Table Top Chain, 880TAB-K325 |
| Chain Details | Width 82.6mm, material POM |
| Speed | 0 - 45m/min(adjustable by inverter) |
| Frame Material | Stainless Steel 304 |
| Bearing Material | Stainless Steel 304 |
| Motor | China brand, 380V, 50HZ, 3 - phase |
| Frequency Inverter | Siemens brand |
| PLC | Siemens brand |
| Electrical Control | With a large overall electrical control cabinet and a PLC control panel (the PLC control panel includes the switches of each motor on each conveyor, speed parameters, alarm list, and I/O monitor). |
| Drainage Tray | Each conveyor line is equipped with a stainless steel 304 drainage tray underneath. |
| Lubrication System | All equipment is required to be equipped with a dry lubrication system. |
Application Video
Our PET Bottles Filling Conveyor System used for the post-filling transportation, labeling, and packaging processes of various beverages such as carbonated drinks, fruit juices, purified water.
PET Bottles Filling Conveyor System
Watch our conveyor system on the post-filling transportation, labeling, and packaging processes
Customized service
Since the specific parameters and configurations of the PET bottle filling conveyor system could be customized according to customers’ requirements, the above information is for reference only. More details requirements could just contact us freely to get a suitable solution.
Advantages:
Highly Efficient Automation: The system adopts advanced variable frequency speed regulation technology to achieve stepless adjustment of the bottle transportation speed, adapting to different production capacity requirements.
Stable and Reliable: The conveyor system has a stable structure and is equipped with an anti-bottle-tipping guide mechanism to ensure the stability of bottles during transportation.
Intelligent Control: Integrated with photoelectric sensors and a PLC control system, it realizes automated monitoring and functions such as bottle-jam alarm and shutdown.
Clean Design: It complies with food-grade hygiene standards and supports CIP (Clean-in-Place) online cleaning to ensure the cleanliness and safety of the production environment.
Strong Compatibility: It can be adjusted according to different bottle specifications and is adaptable to various bottle diameters and container types.
Ask Us Anything Anytime
Your email will be delivered directly to Smart Convey’s product specialists and we will respond to you within 1 working day(24 hours) at the latest
Learn More From
Frequently Asked Questions
A: The system is designed for PET bottles but can also transport other rigid containers, such as glass bottles and aluminum cans. It is adaptable to various bottle diameters and container types, ensuring versatility across different industries.
A: Yes, the system utilizes advanced variable frequency speed regulation technology, allowing for stepless adjustment of the bottle transportation speed to meet different production capacity requirements. It also offers both manual and auto modes for flexible operation.
A:The dry lubrication system uses dry lubricating oil to maintain the smooth operation of chains and sprockets in long conveyor lines. Unlike traditional lubrication methods, this system keeps the conveyor line dry, preventing wet spots on the floor and equipment, reducing maintenance needs.
The conveyor system is equipped with an anti-bottle-tipping guide mechanism, which ensures the stability of bottles during transportation. Additionally, the multi-lane chain plate design prevents bottle damage by eliminating material extrusion and mechanical pressure.
