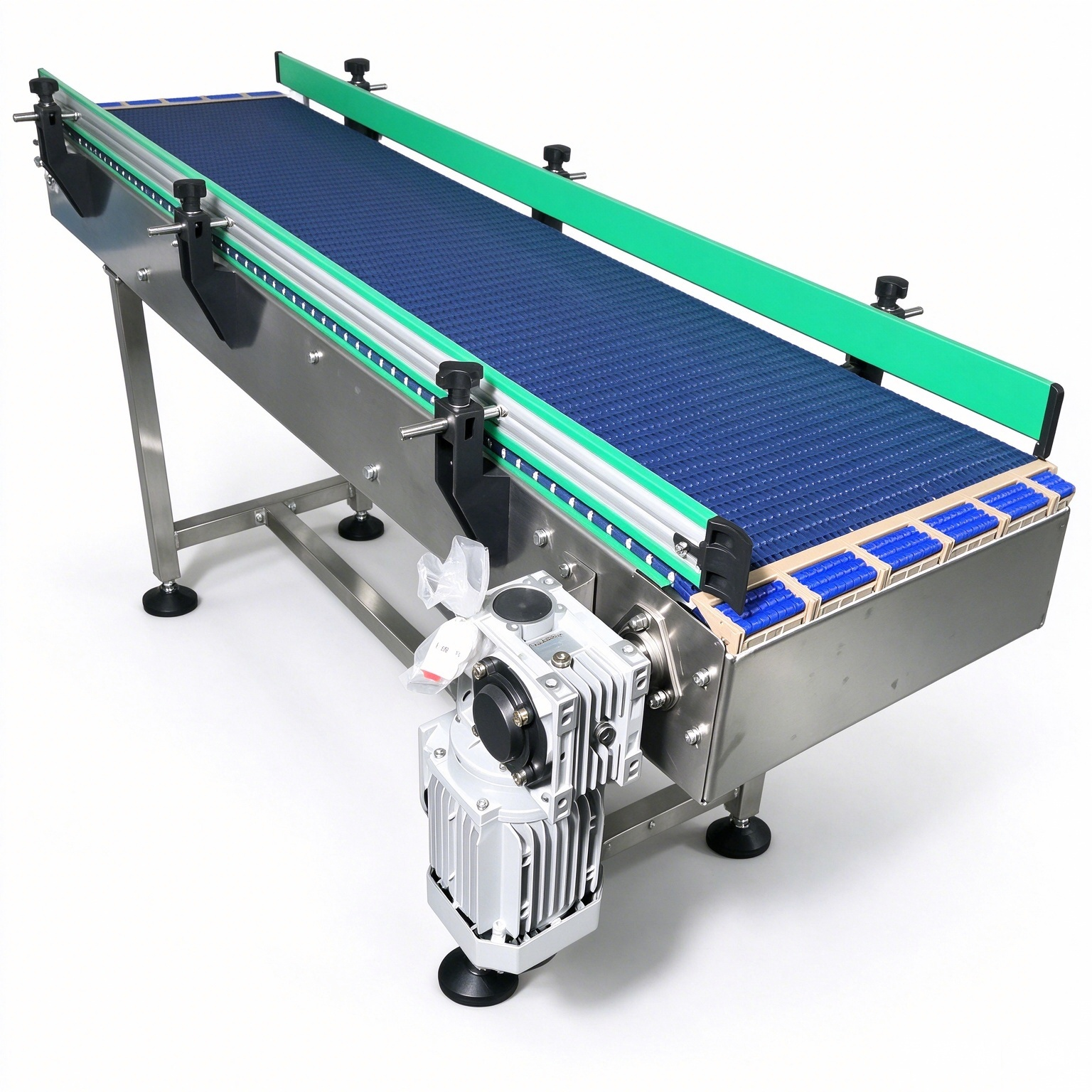

Food Grade POM 900 series flush grid Straight Modular Belt Conveyor for Carton Handling
Product Description:
Applications:
Product Description:

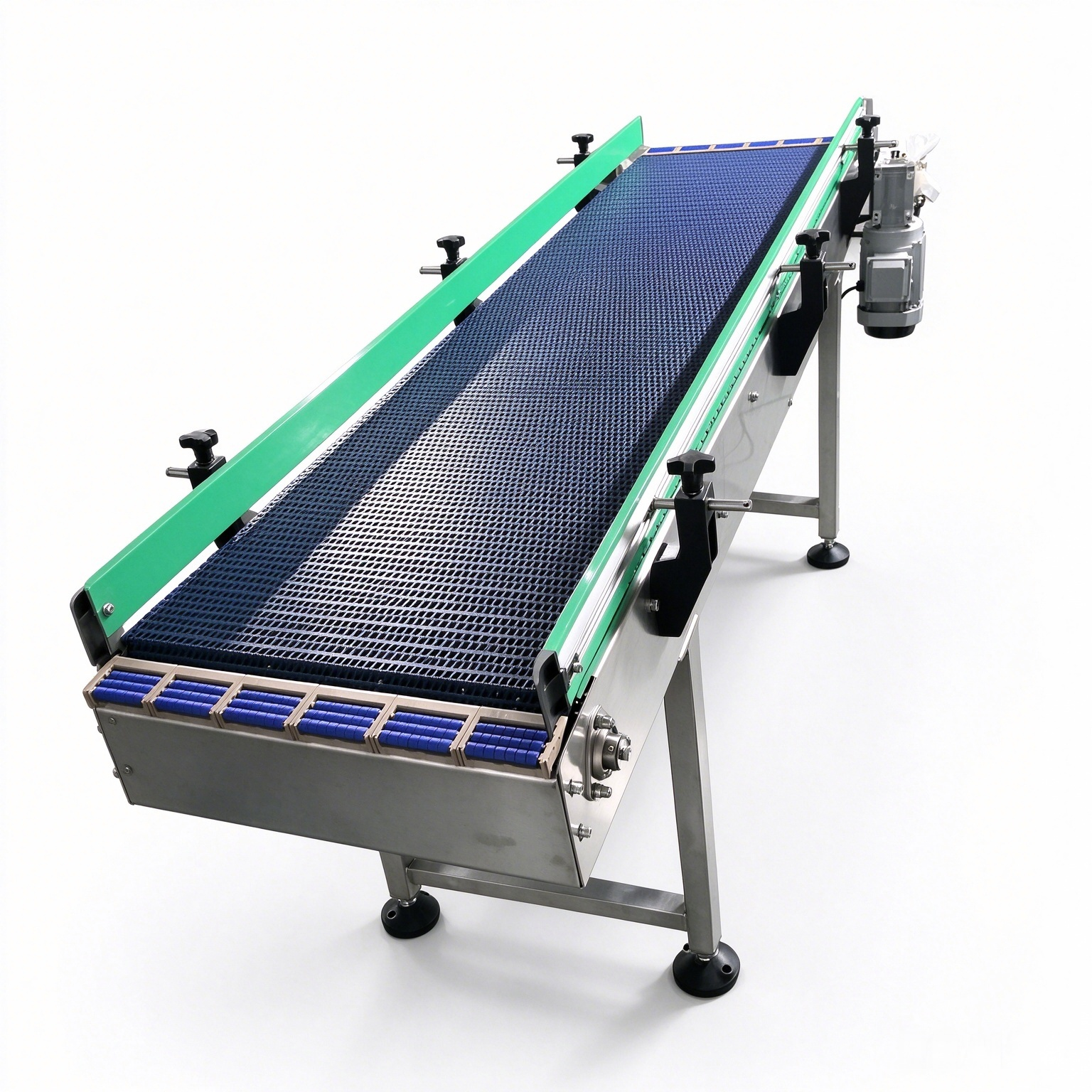

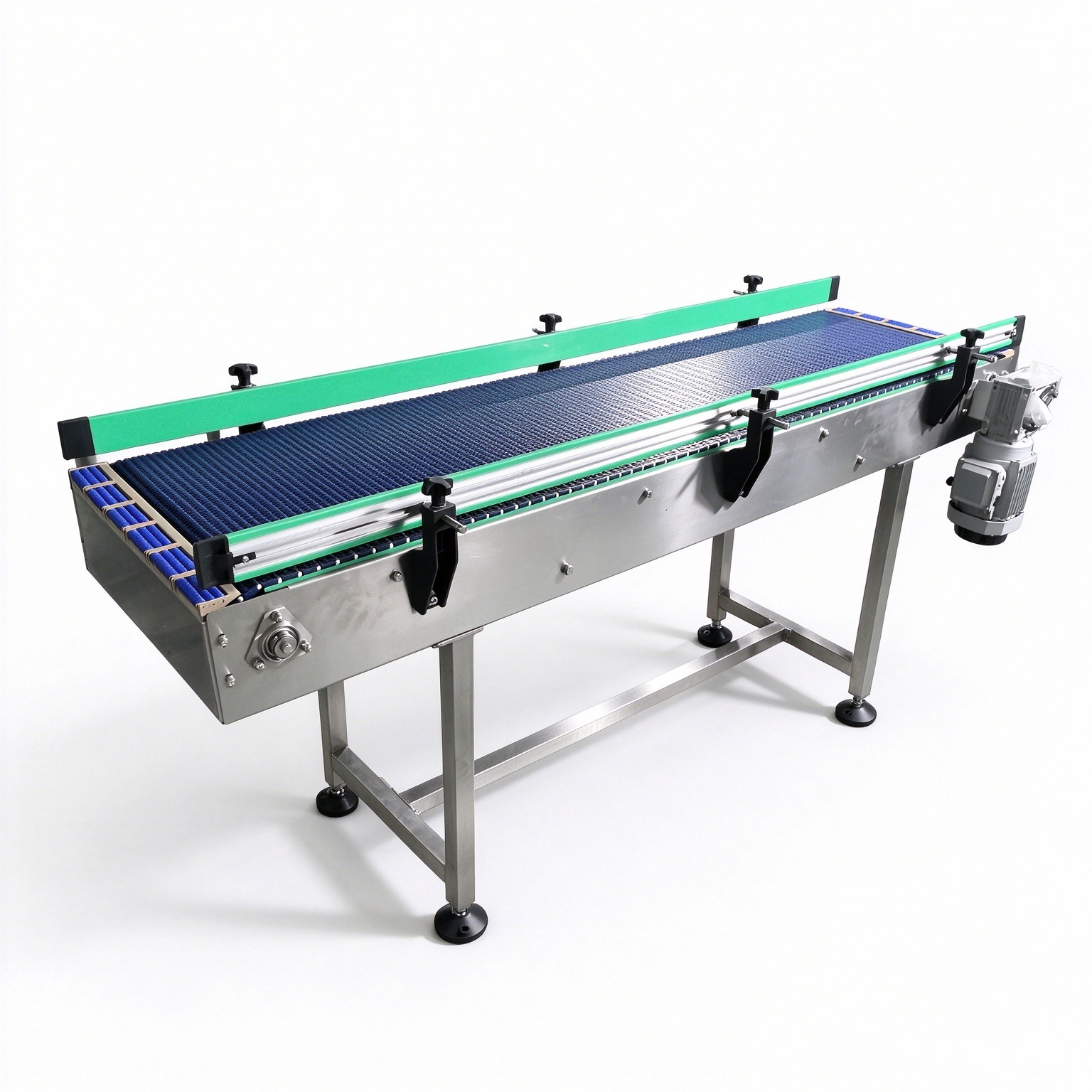

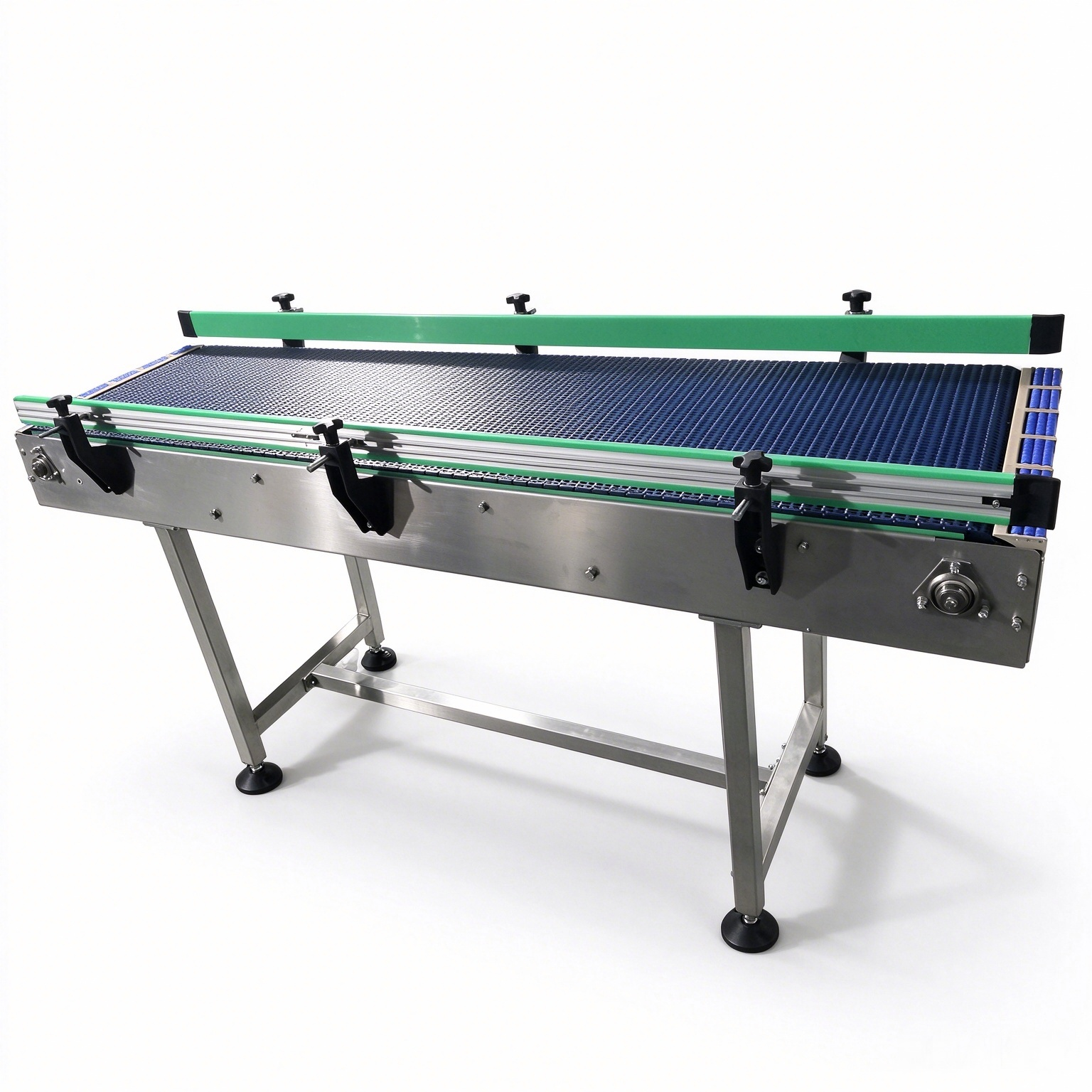

Features a stainless steel frame and a food-grade POM 900-series modular belt flush grid designed for carton conveying in the pharmaceutical and food industries, with label printers connected at both ends.
Applications:
Food Processing: Conveying packaged food, bakery products, and other suitable food-processing items.
Beverage Industry: Transferring bottles, containers, and packaged beverages between production stations.
Packaging Industry: Moving cartons, packages, and products through packing and inspection processes.
Daily Chemical Industry: Conveying bottles, containers, and packaged household or personal care products.
Pharmaceutical and Personal Care: Product transfer in suitable manufacturing and packaging environments, subject to hygiene and material requirements.
General Manufacturing: Moving components and finished products between assembly, inspection, and packing stations.
Warehouse and Logistics: Integrating product transfer sections into packing and distribution workflows where the belt configuration is suitable.
The final application suitability depends on the conveyed product, operating environment, belt material, temperature, and applicable hygiene requirements.
NEWS & EVENTS
- Tel: 0086 173 1754 7809
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
Key Features
Stainless Steel Frame: Sturdy construction suitable for food industry production environments.
Modular Plastic Conveyor Belt: Features a plastic belt design with various model options available.
Adjustable Guardrails: Guide rails are adjustable to accommodate products of different widths and minimize lateral movement during transport.
Motor-Driven Operation: Powered drive ensures continuous product transport between workstations and production stages.

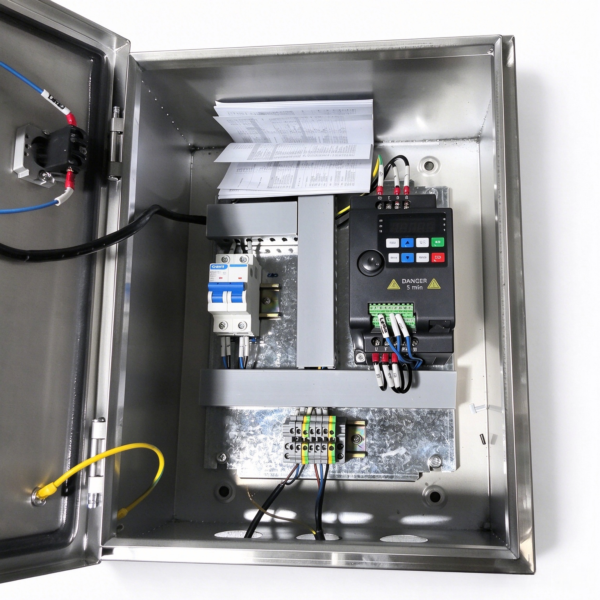

Flexible Customization: Conveyor length, width, working height, belt specifications, frame material, and motor/VFD configurations can all be customized to meet your specific application needs.
Easy Integration: Designed for seamless integration with existing production lines, labeling machines, packaging equipment, and other conveyor systems.
| Straight modular belt conveyor | |
|---|---|
| Item | Specification |
| Conveyor length | 2m/customized |
| Conveyor height | 914.4mm+-50mm/customized |
| Belt width | 500mm |
| Belt details | 900 FG/other option |
| Belt features | Food-grade |
| Frame material | Stainless steel 304 / Aluminum Profiles / Carbon Steel |
| Conveying speed | 20m/min, Adjustable |
| Power voltage | 110/120V，50/60HZ, single-phase; Based on local voltage |
| Motor brand | China brand/SEW/ other option |
Food Grade Modular Belt Conveyor for Carton Handling

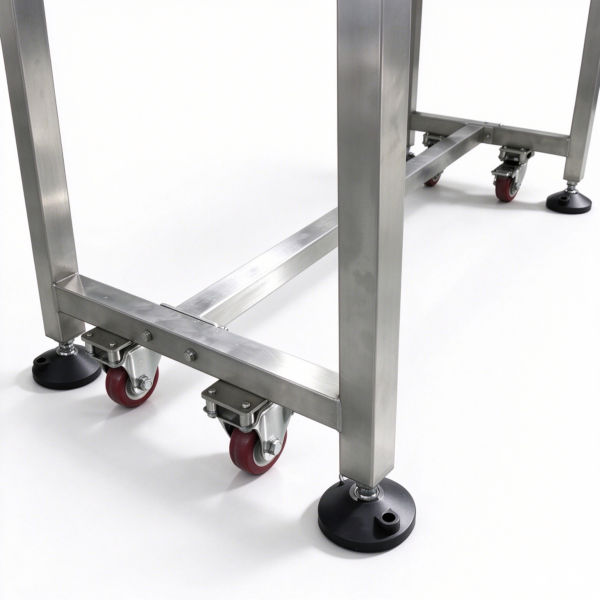

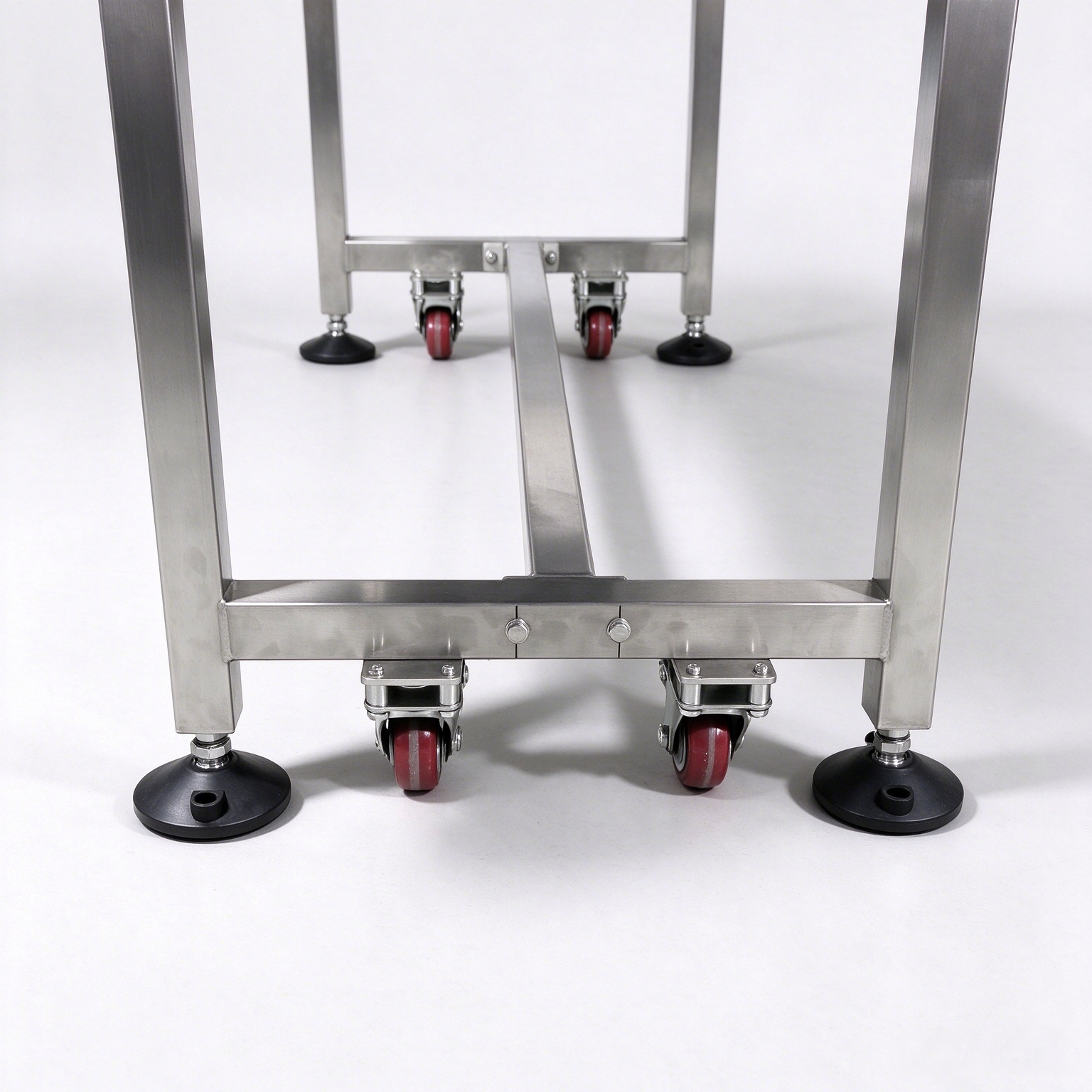

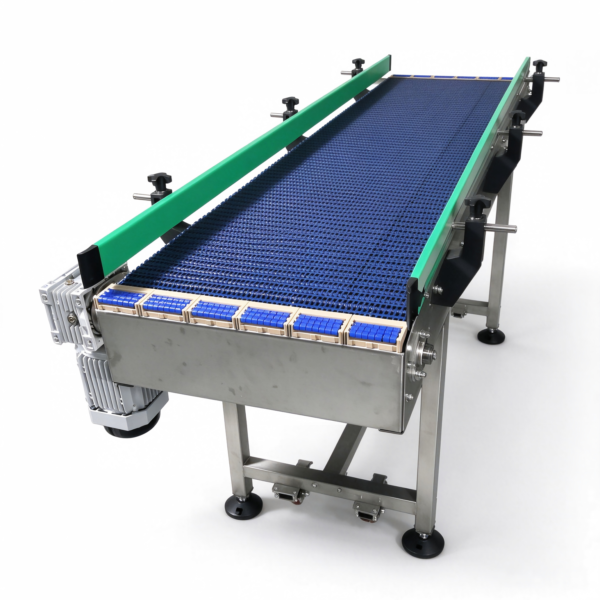

This model features a stainless steel frame and a 900-series flush grid POM modular belt, specifically designed for carton conveying in the food and medical industries. It can be connected to labeling machines and label printers at both ends. The support legs are equipped with both swivel casters with brakes and leveling feet, ensuring stability and ease of movement, while the height is adjustable.

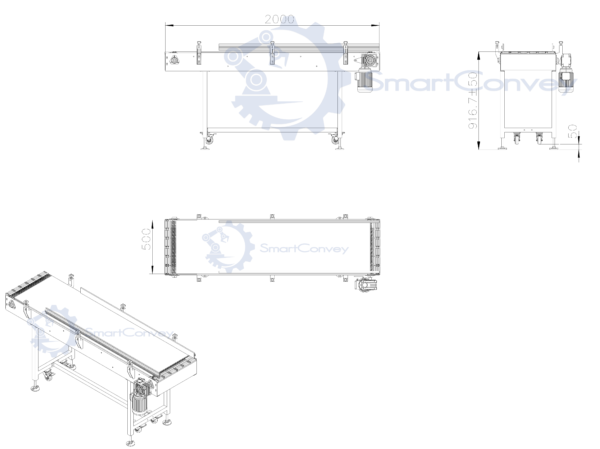

Drawings
