Bottle Conveyor System
Product Description:
Applications:
Product Description:
A conveyor system designed for the stable, continuous transport of bottled and canned products, featuring flexible layouts and customizable configurations to meet the diverse requirements of beverage production lines.
Applications:
- Beverage：PET bottles, Cans, Coca-Cola, Nongfu Spring bottled water, Wine bottle…
- Food Processing：seasonings, edible oils…
- Daily Chemical：cosmetics, detergents…
- Pharmaceutical：oral liquids, medicines…
- Packaging & Automation：Cardboard boxes…
NEWS & EVENTS
- Tel: 0086 173 1754 7809
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
Flexible Conveyor Layout

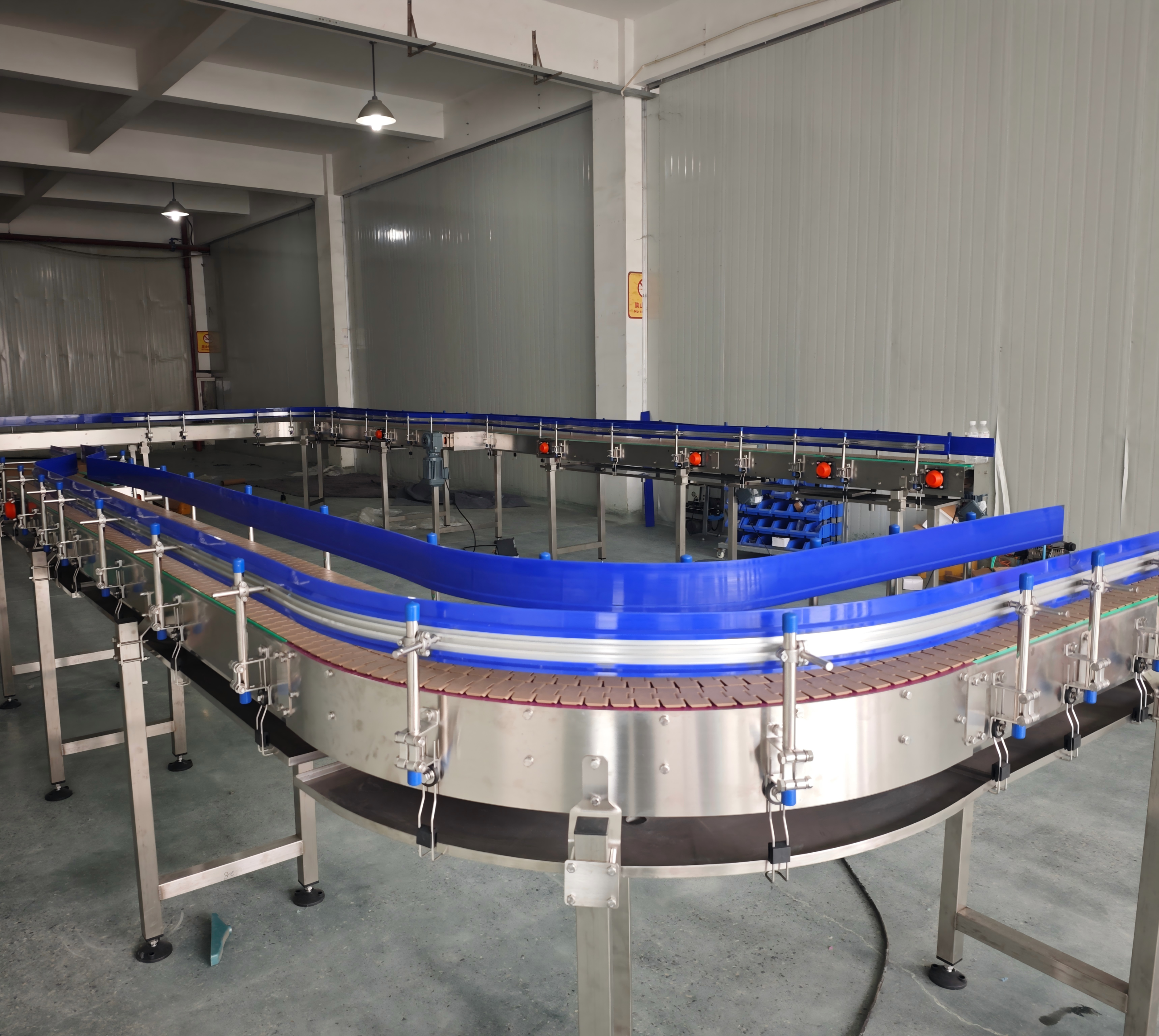

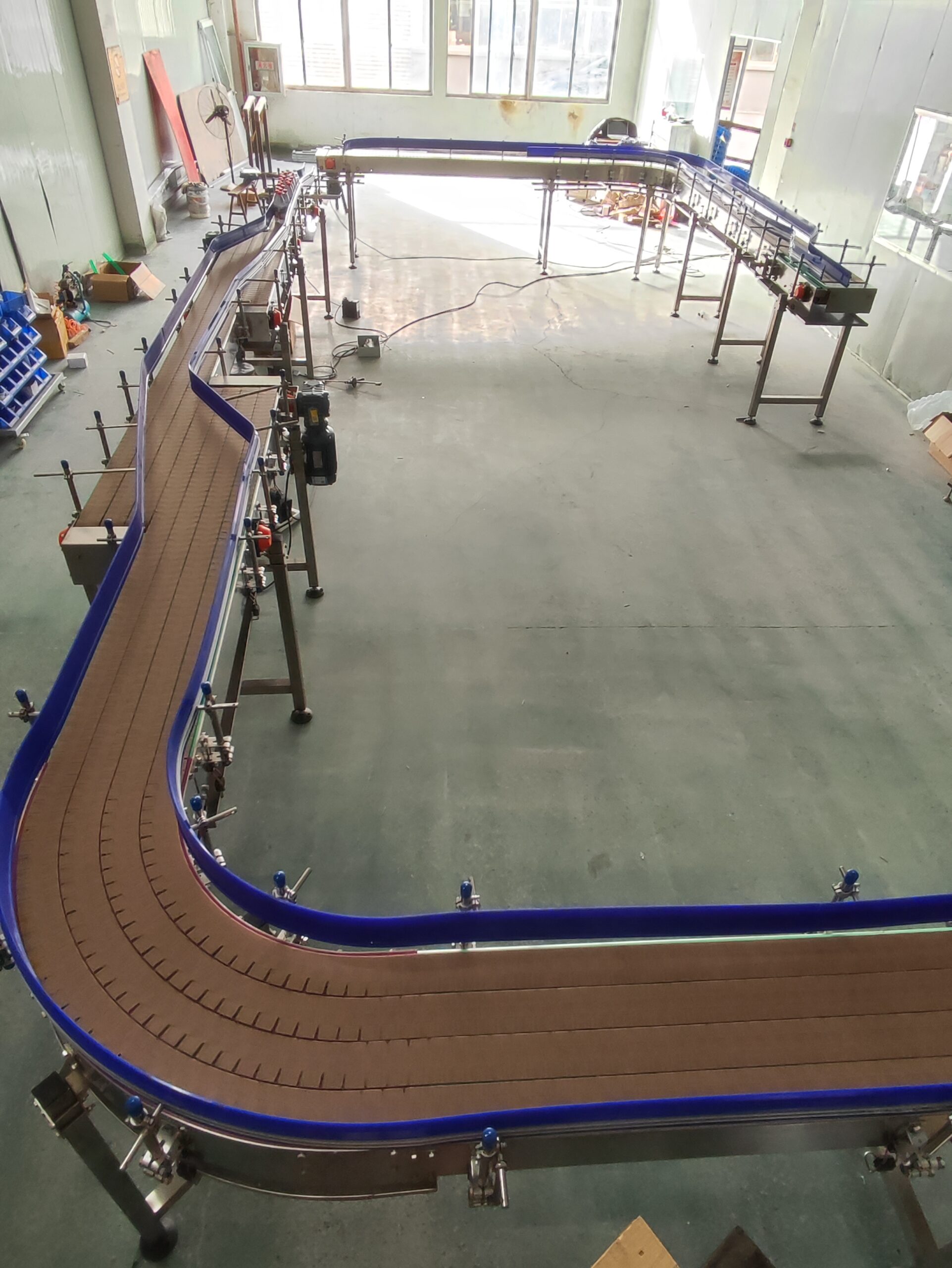

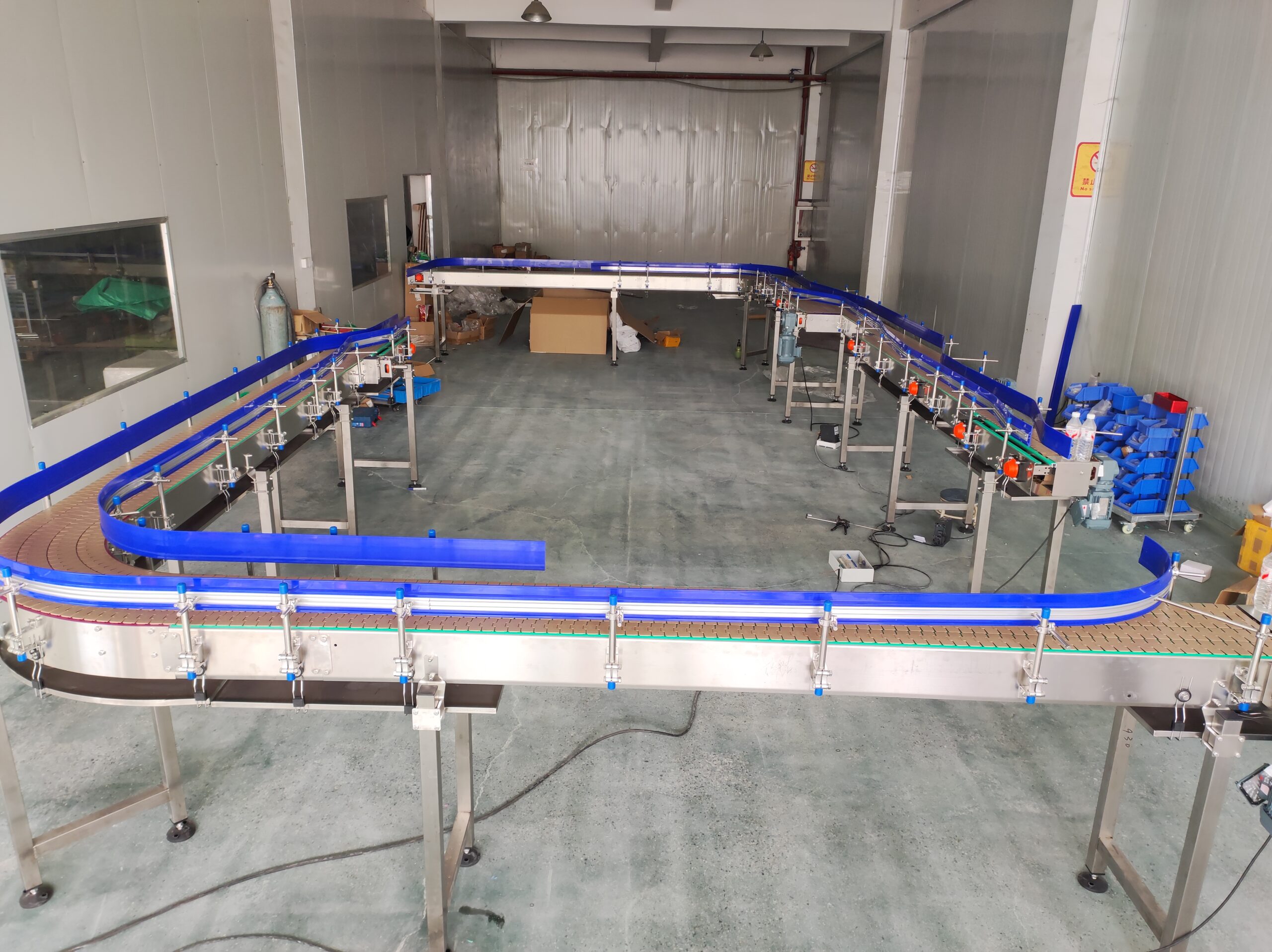

The chain conveyor design supports both straight and curved sections, allowing the conveyor to adapt to different production layouts and available floor space.
Stable Bottle Conveying

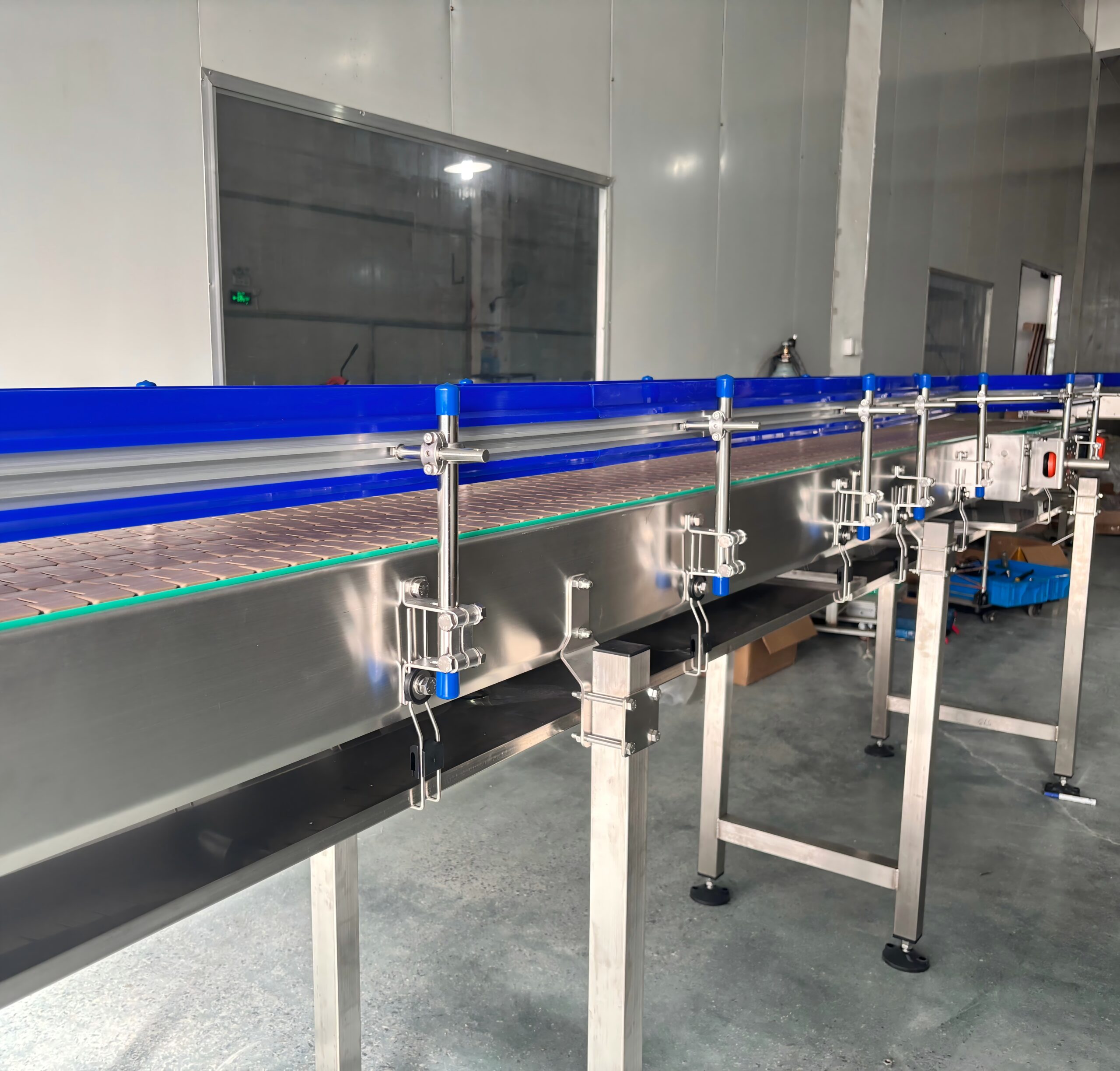

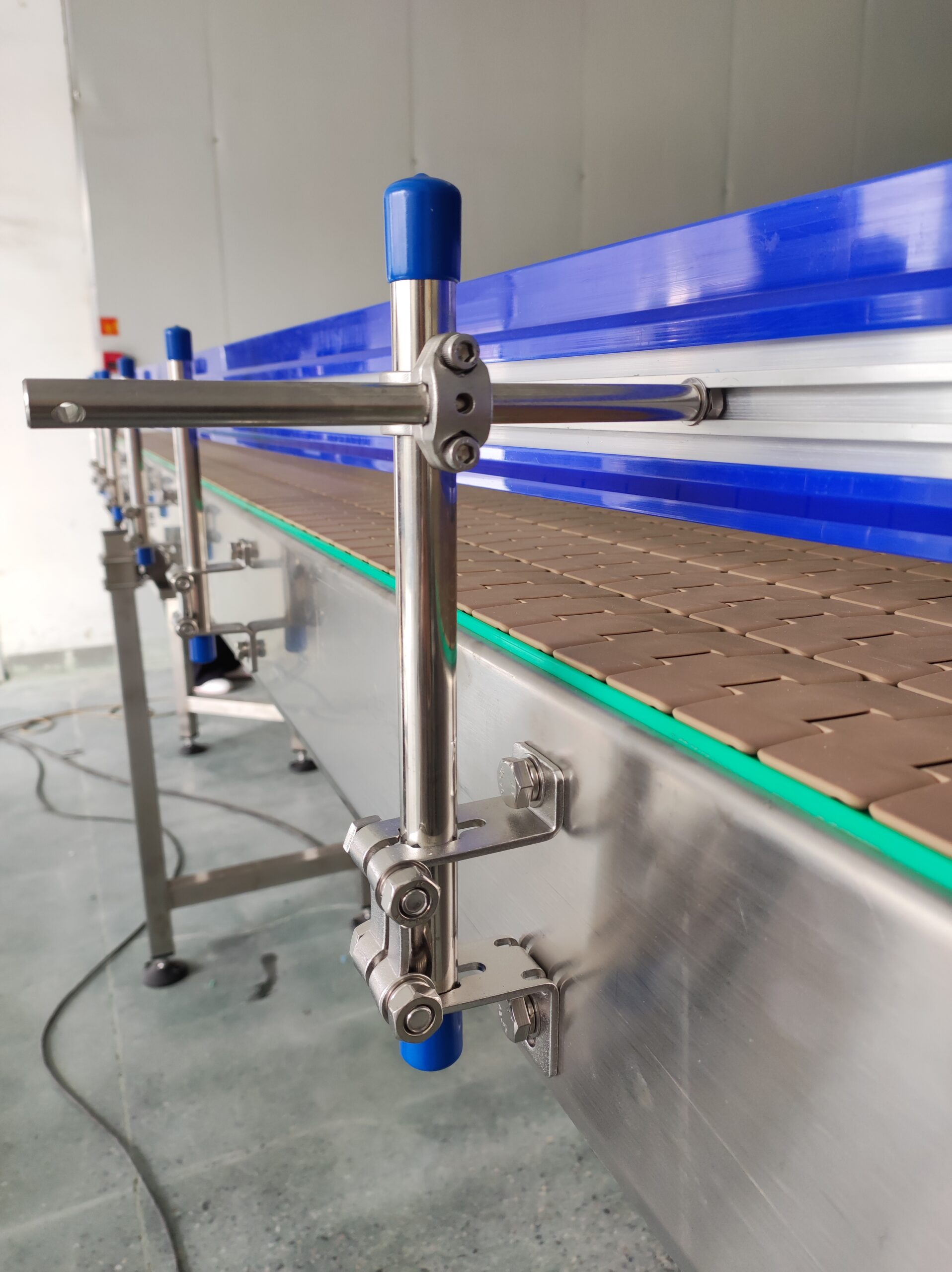

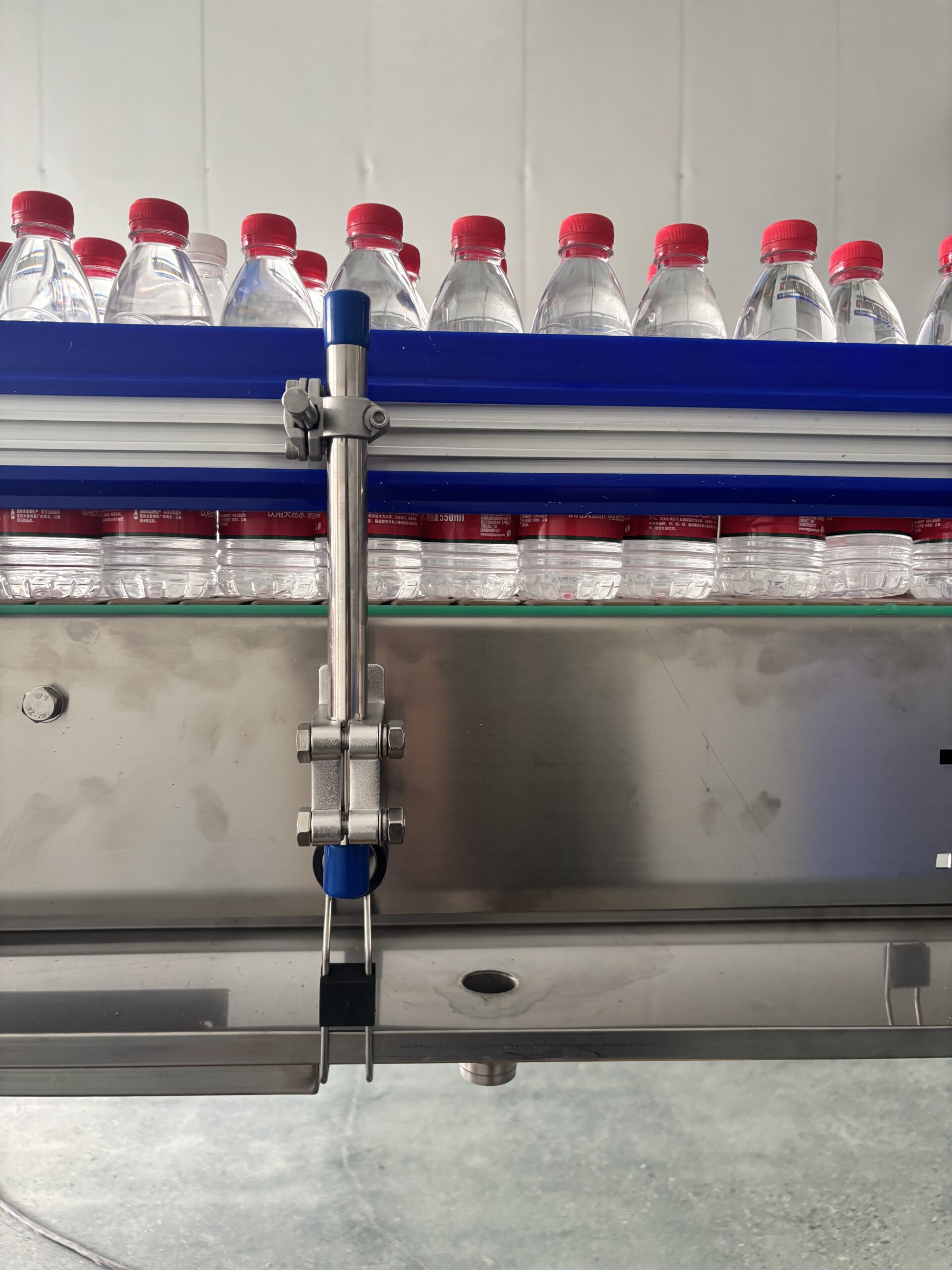

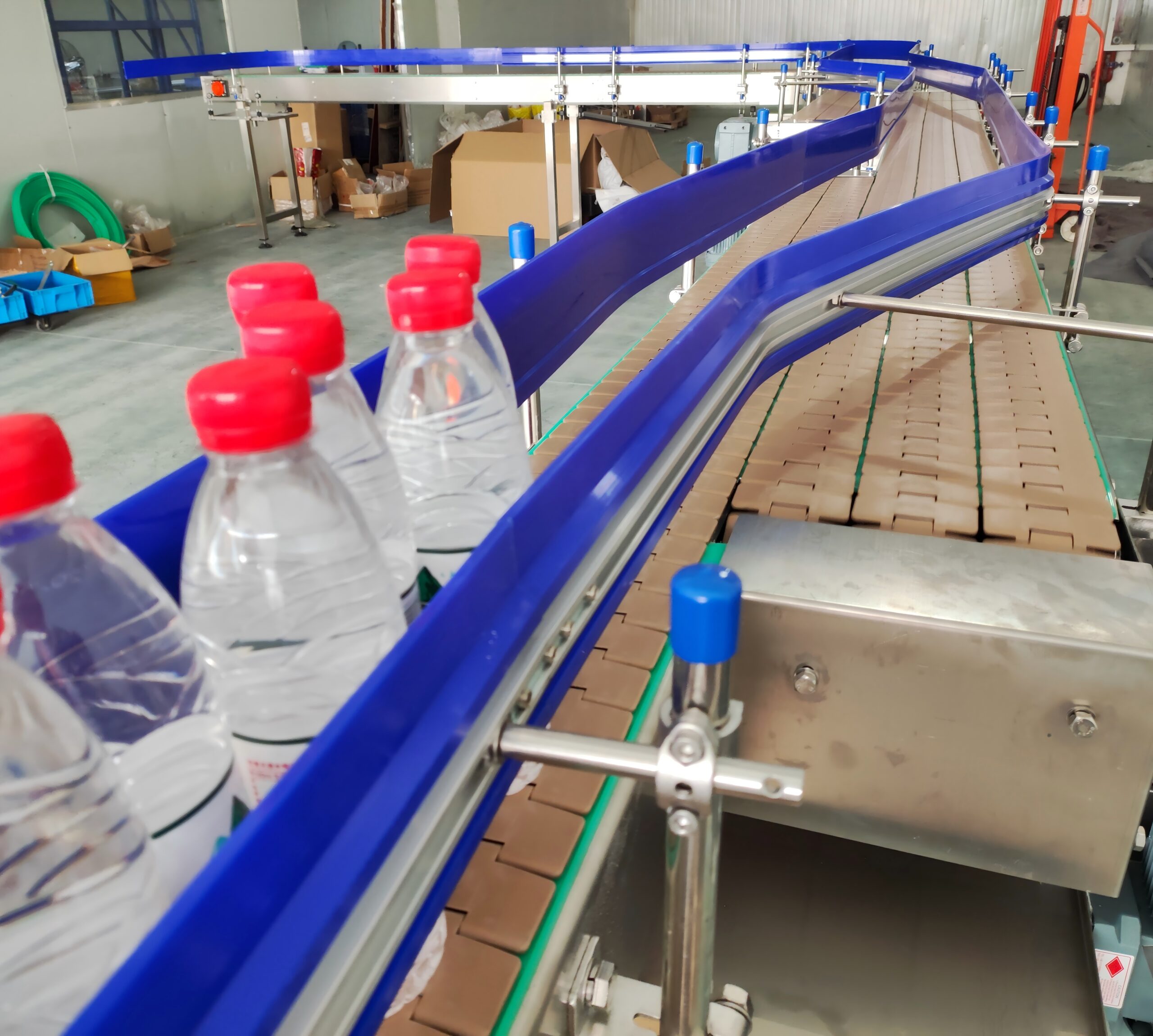

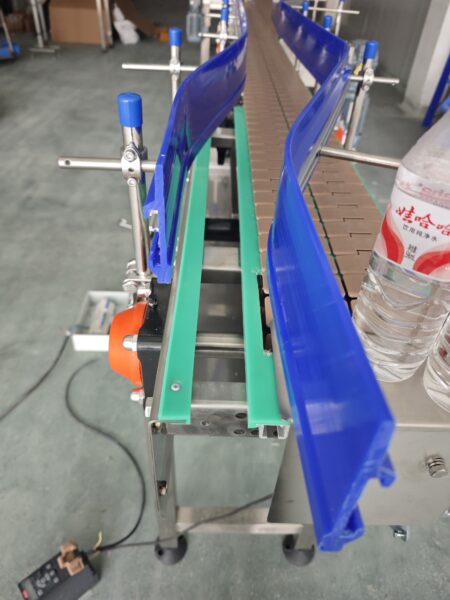

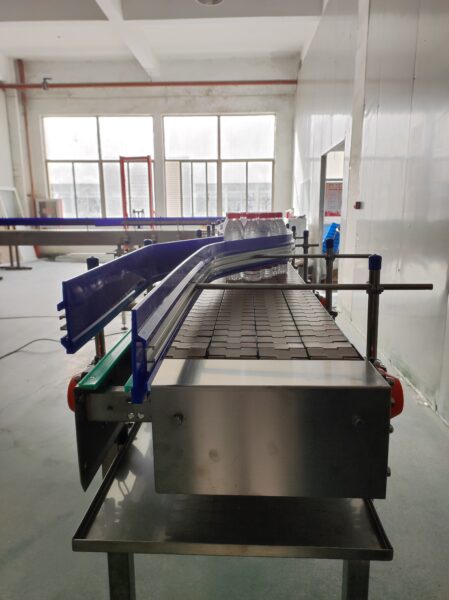

The plastic top chain and adjustable side guides help maintain stable bottle movement and reduce the risk of product deviation or tipping during transportation.
Stainless Steel Structure

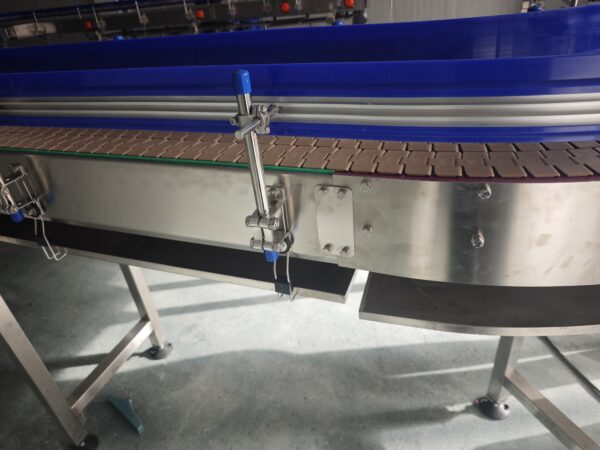

The stainless steel conveyor frame provides good durability and corrosion resistance, making the system suitable for demanding production environments.
Easy to Customize
Conveyor length, width, belt type, speed, guide rails, drive configuration, and overall layout can be customized according to the customer’s production requirements.
Easy Maintenance
The top chain structure allows individual components to be inspected, maintained, or replaced when necessary, helping reduce maintenance time and downtime.
Easy Line Integration
The conveyor can be integrated with filling machines, labeling machines, inspection systems, packaging machines, and other equipment to create a complete automated conveying line.
| Chain Conveyor | Details |
|---|---|

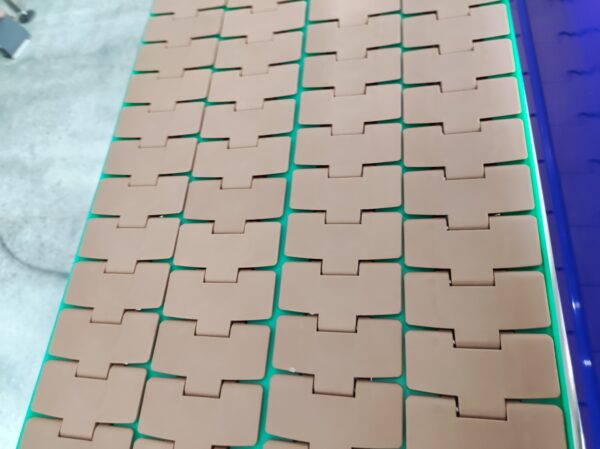

| Chain Type | Top Chain, 880TAB-K325 |
| Chain Details | Width 82.6mm, material POM |
| Speed | 20- 25m/min(adjustable by inverter) |
| Frame Material | SS 304 |
| Bearing | SS304 |
| Draining tray | SS304 |
| Motor | SEW, 1.5KW/0.75KW/0.37KW |
| Frequency Inverter | Danfoss brand/as your requirement |
| Conveyor System | Large overall electrical control cabinet |
| Power Voltage | 415V, 50HZ, 3 – phase/As your requirement |
The bottled product conveying system is a type of chain conveyor designed to provide continuous, reliable transport for bottled containers and other canned products on production and packaging lines. Featuring durable chain-plate belts and stainless steel support structures, the system ensures smooth product transport and integrates easily with various processing and packaging equipment.A conveyor system designed for the stable, continuous transport of bottled and canned products, featuring flexible layouts and customizable configurations to meet the diverse requirements of beverage production lines

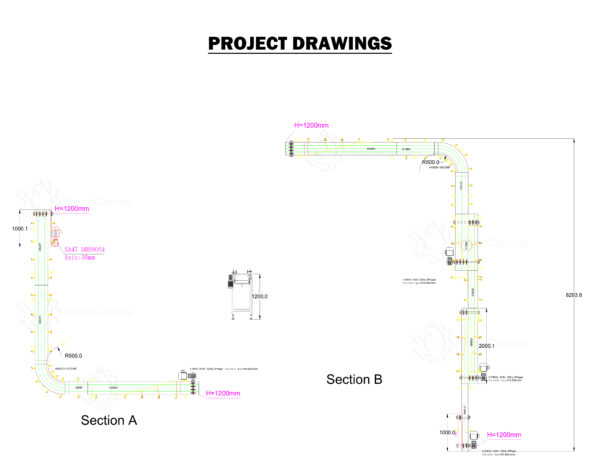

Project Details:

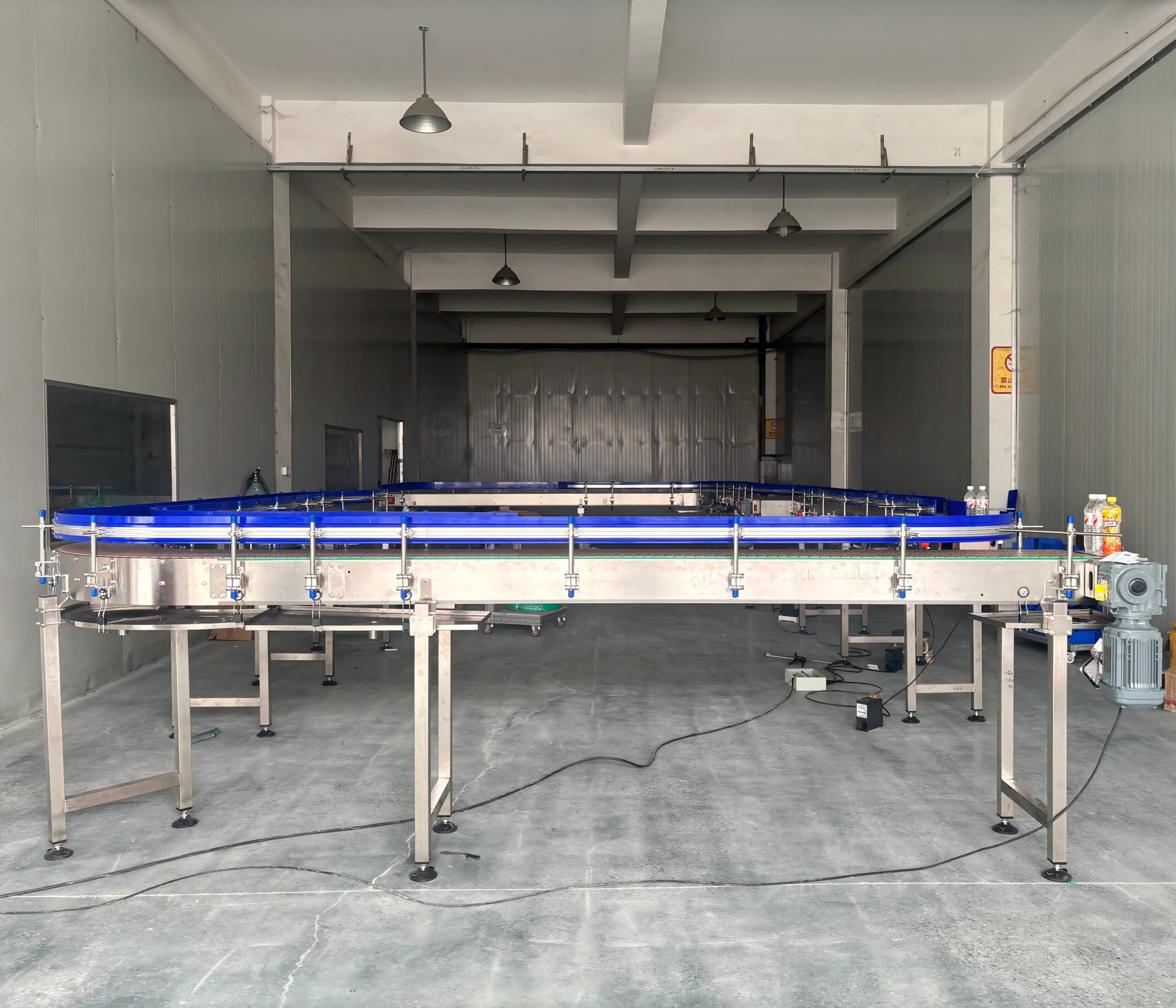

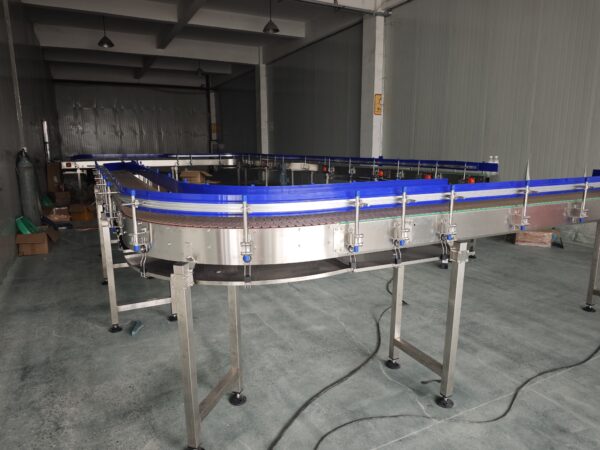

This equipment is used for PET bottle conveying in the Pepsi beverage industry. It connects to the client’s existing conveyor at one end and to the sterilization line at the other; it is equipped with a SEW motor and a Danfoss variable frequency drive.
