Bottle Gripper Conveyor
Product Description:
Applications:
Product Description:

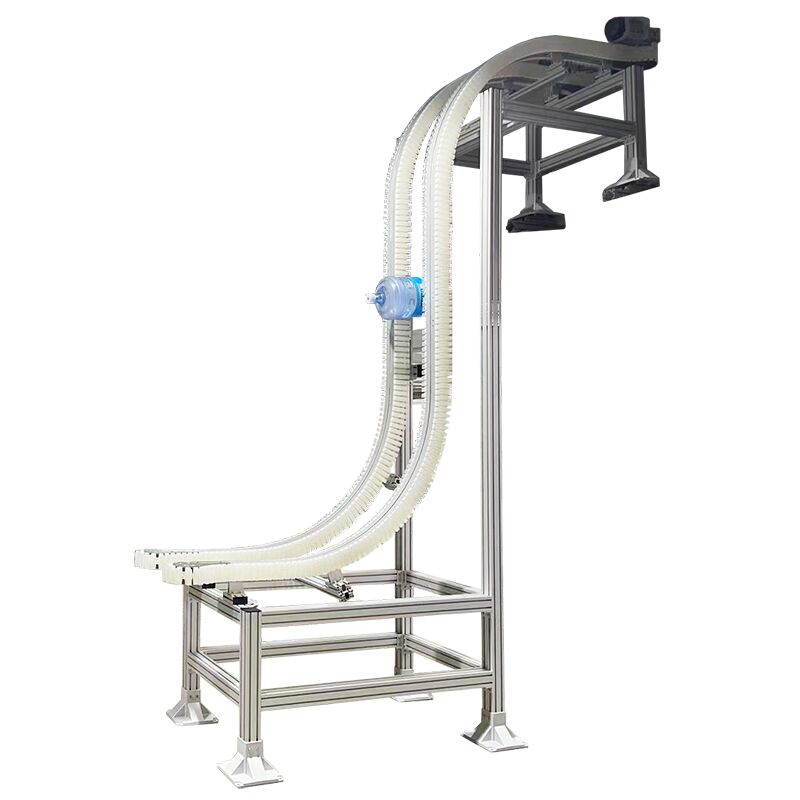

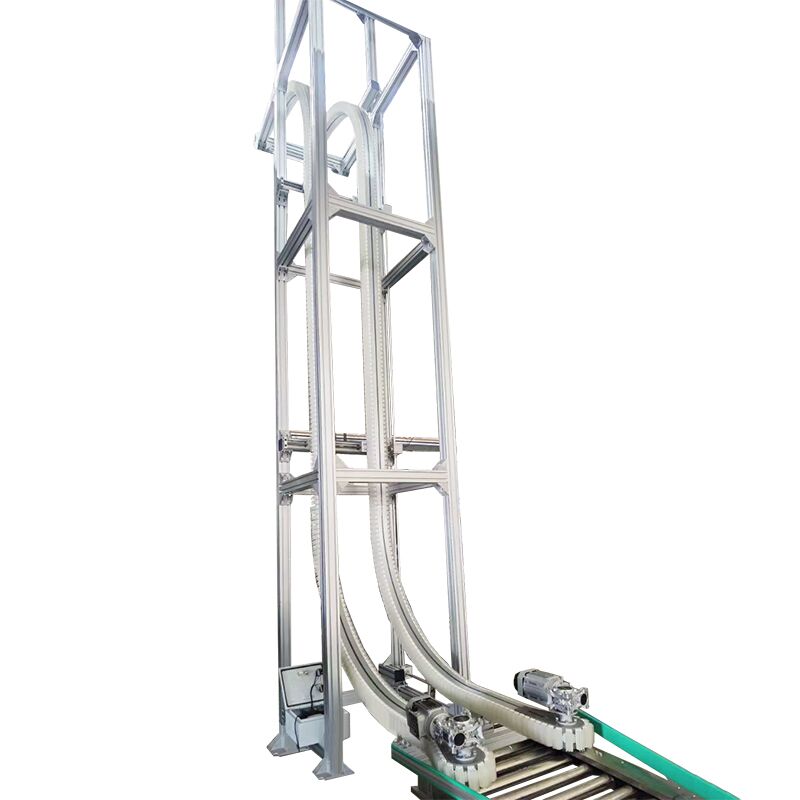

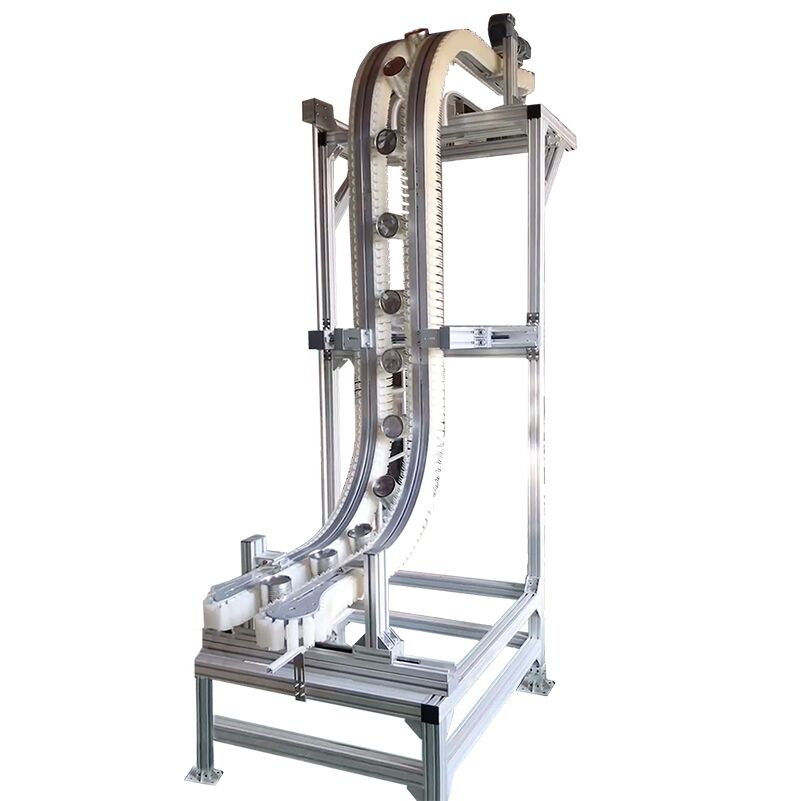

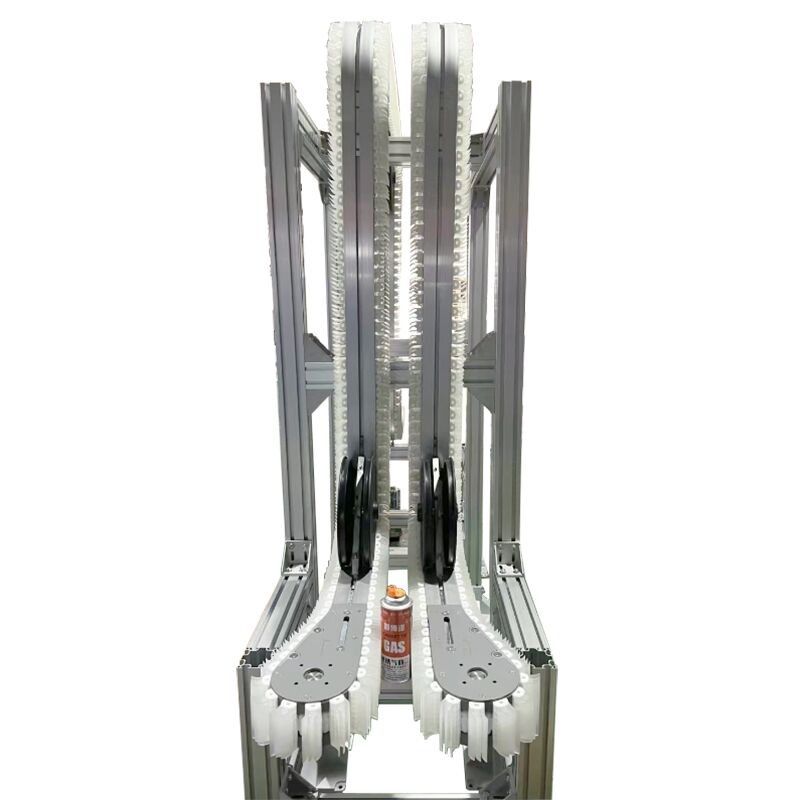

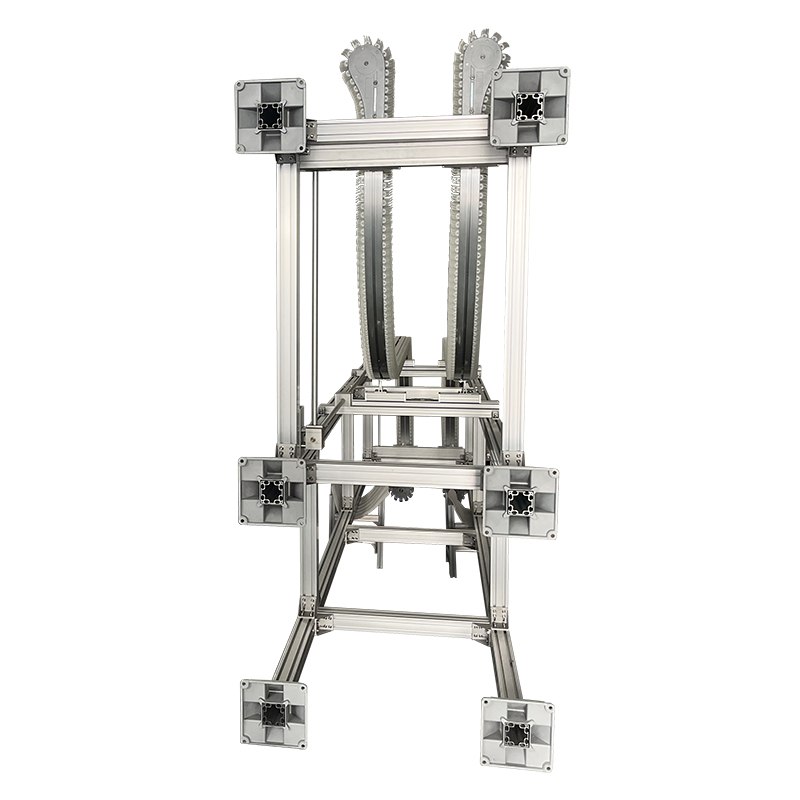

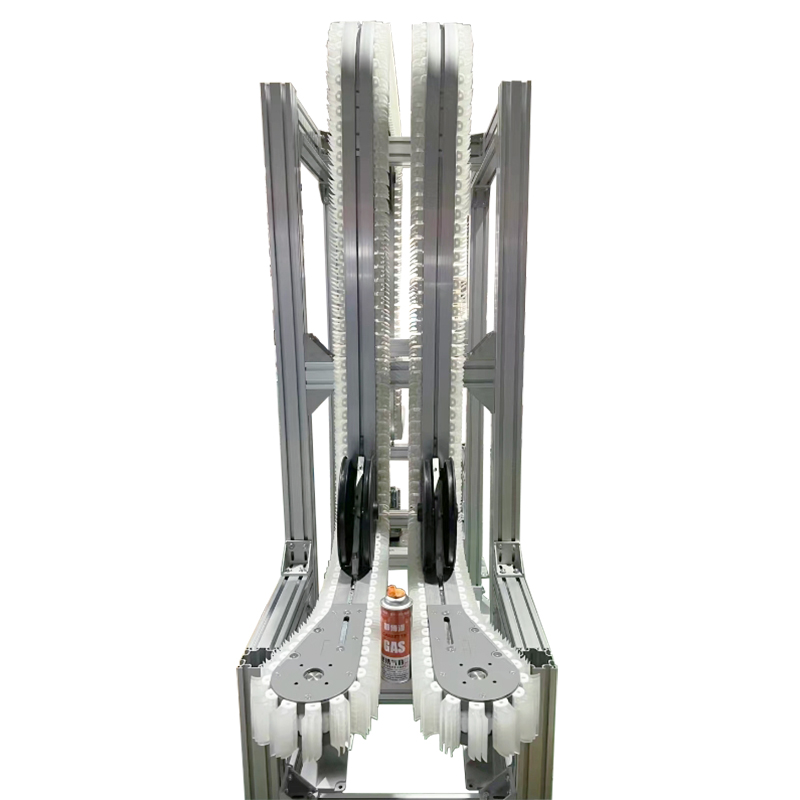

Bottle Gripper Conveyor constructed with two parallel flex conveyors utilizing a urethane gripper chain that wedges the sides of the product to lift or lower it vertically.
Applications:
Widely used in products of various sizes and shapes including boxes, totes, cans, plastic containers, and bottles.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Saves floor space and conveyor length
- Maximize space utilization by creating buffering at ceiling levels.
- Easily integrates with other applications such as blowers, fillers, and packaging lines
- Flexible and lightweight
- Easy to install and accommodate site layouts.
| Item | Specifications |
| Frame Material | Aluminum profile/Stainless steel |
| Chain type | Flexible chain with rubber(soft&hard) |
| Chain width | 63mm/83mm/103mm |
| Conveyor height | 500-6000mm, customized |
| Conveyor speed | 0-60m/min(adjustable) |
| Max total loading weight | 90kg |
| Shape type | C-Wedge/U-Wedge/S-Wedge/O-Wedge |
| Motor brand | SEW/Delta/UCAN/Customized |
| Voltage(Power supply) | 220V/380V/415V/Customized |
Products are fed into the Bottle Gripper Conveyor from a horizontal conveyor with at least a product length gap to avoid hitting each other while going through the vertical transition. Products then exit onto a horizontal conveyor.
