Corrugation Field Conveyor System
Product Description:
Applications:
Product Description:

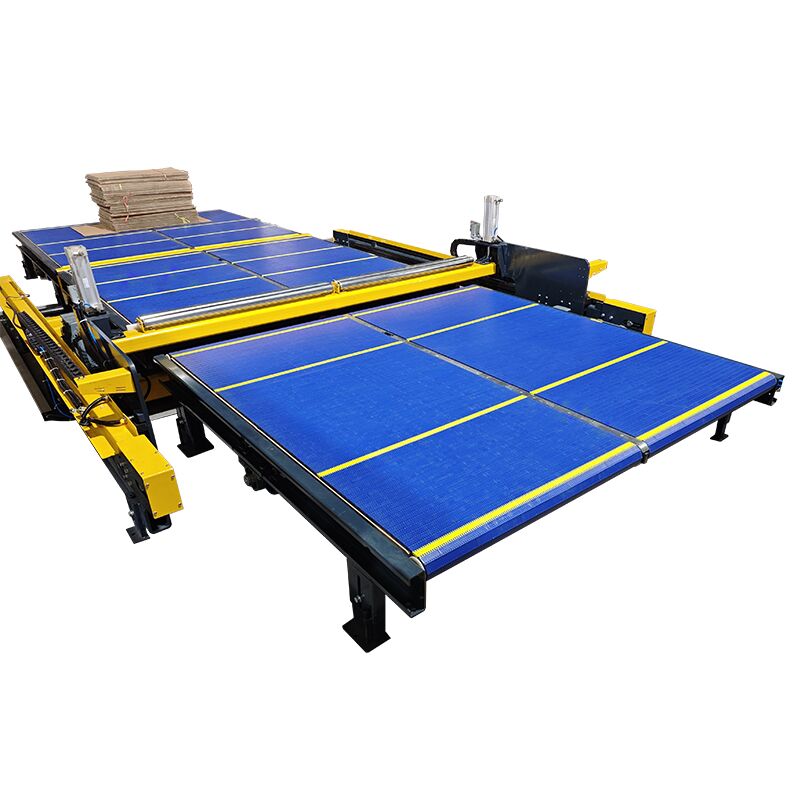

The Corrugation Field Conveyor System consists of multiple units of modular belt conveyors, seamlessly connecting equipment from different production processes to facilitate rapid and flexible material circulation between the two processes. Additionally, the system can be configured with a control system based on customer requirements, enabling automated scheduling and transportation of materials. Our standard corrugated paper production capacity is approximately 1 stack per minute, fully meeting the demands of our clients.
Applications:
The automatic cardboard clamp conveyor system conveys the corrugation stack from the flatbed die cutter to the packaging areas. Our conveyor system would automatically clamp the cardboard and push the stack onto the cardboard. It would help customers to realize intelligent production better. Such conveyor systems are widely used in paper fields conveying, packaging, and material handling processes.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Lightweight modular belt conveyor system for easy installation and mobility, providing greater flexibility.
- Low maintenance costs and minimal noise pollution.
- Shorter conveyor lines offer increased flexibility for on-site control and higher levels of automation.
| Item | Parameter |
| Conveying Goods | Corrugation Stack, Cardboard etc.. |
| Conveyor Type | Modular Belt Conveyor |
| Total Power | 0.75-2.2KW/ Unit |
| Conveying Speed | 20M-30M/Minute |
| Conveying Loading | Max 250KGS/Square Meter |
| Conveying Capacity | Around One Pallet Per Minute |
| With PLC Control | Yes |
| Conveyor Dimension | 1600L*1500W/2500L*2500W/ |
| 3600L*2500W (customizable) | |
| Conveyor Height | Min 320mm |
| Motor Brand | SEW |
The Corrugation Field Conveyor System is a solution for efficient material handling in manufacturing. It seamlessly transports corrugated paper from the flatbed die cutter area to packaging and bundling zones, revolutionizing the process with its customizable features, impressive speed, and capacity. Its modular design and ability to solve industry challenges offer a sustainable and efficient alternative to traditional roller conveyors.
Our conveyor system could also include the automatic clamp device and hydraulic pusher to better realize your intelligent corrugation factor.
Application Steps: Our conveyor transports corrugated paper from the cardboard flatbed die cutter to the packaging and bundling areas.
Industry Challenges: Previous roller conveyor systems exhibited the “leg effect,” leading to the wastage of corrugated paper and environmental pollution.
Solution (SC Solution): Our company offers a modular belt conveyor system to replace the previous roller conveyor system.
Customized Conveyor Solutions:
When designing conveyor routes, various factors must be considered, including different types of machinery and demanding site conditions or obstacles such as pillars. With our years of experience, rest assured that we will tailor a solution to meet your specific needs. Whether you require turning devices or right-angle conveyors, we have planned the right solution to ensure optimal performance for your entire factory conveyor system.
