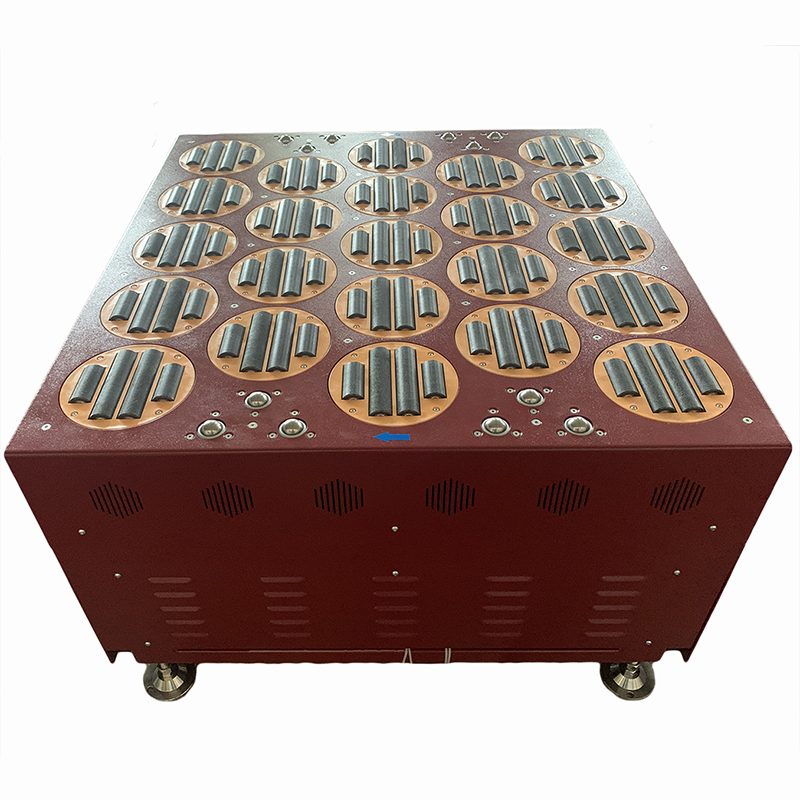

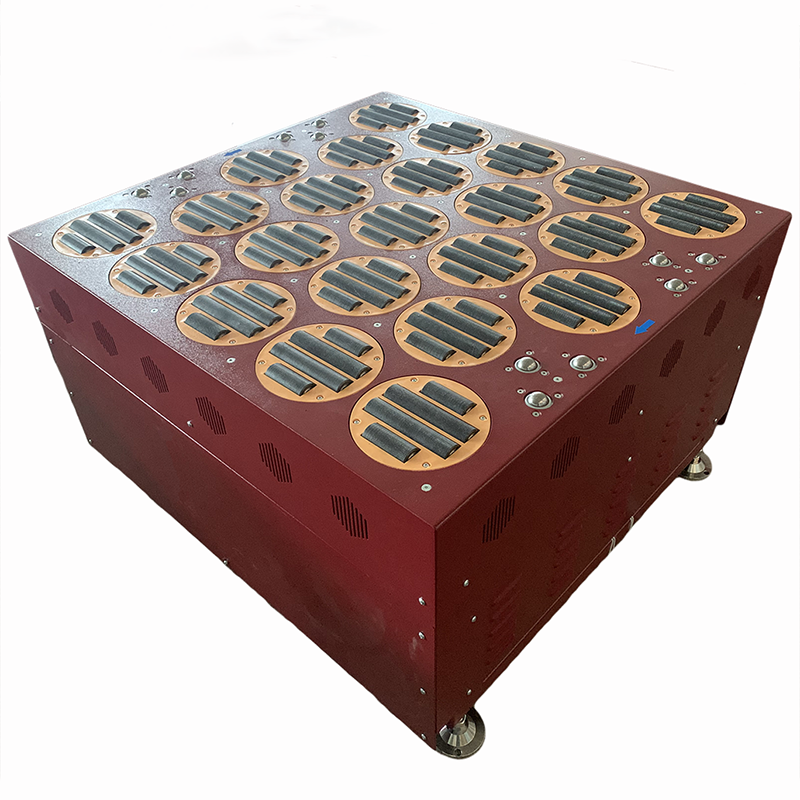

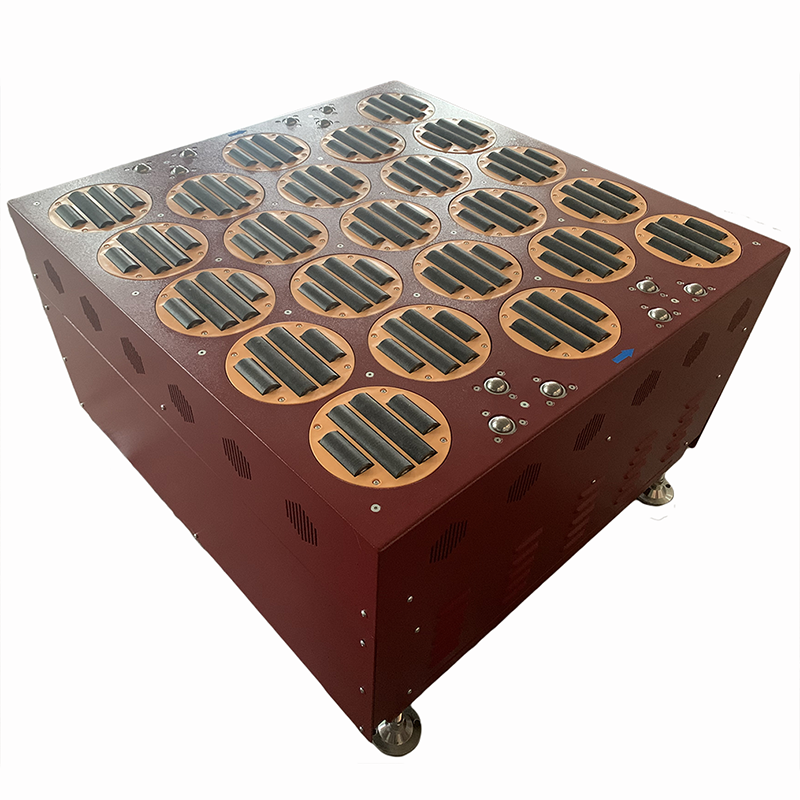

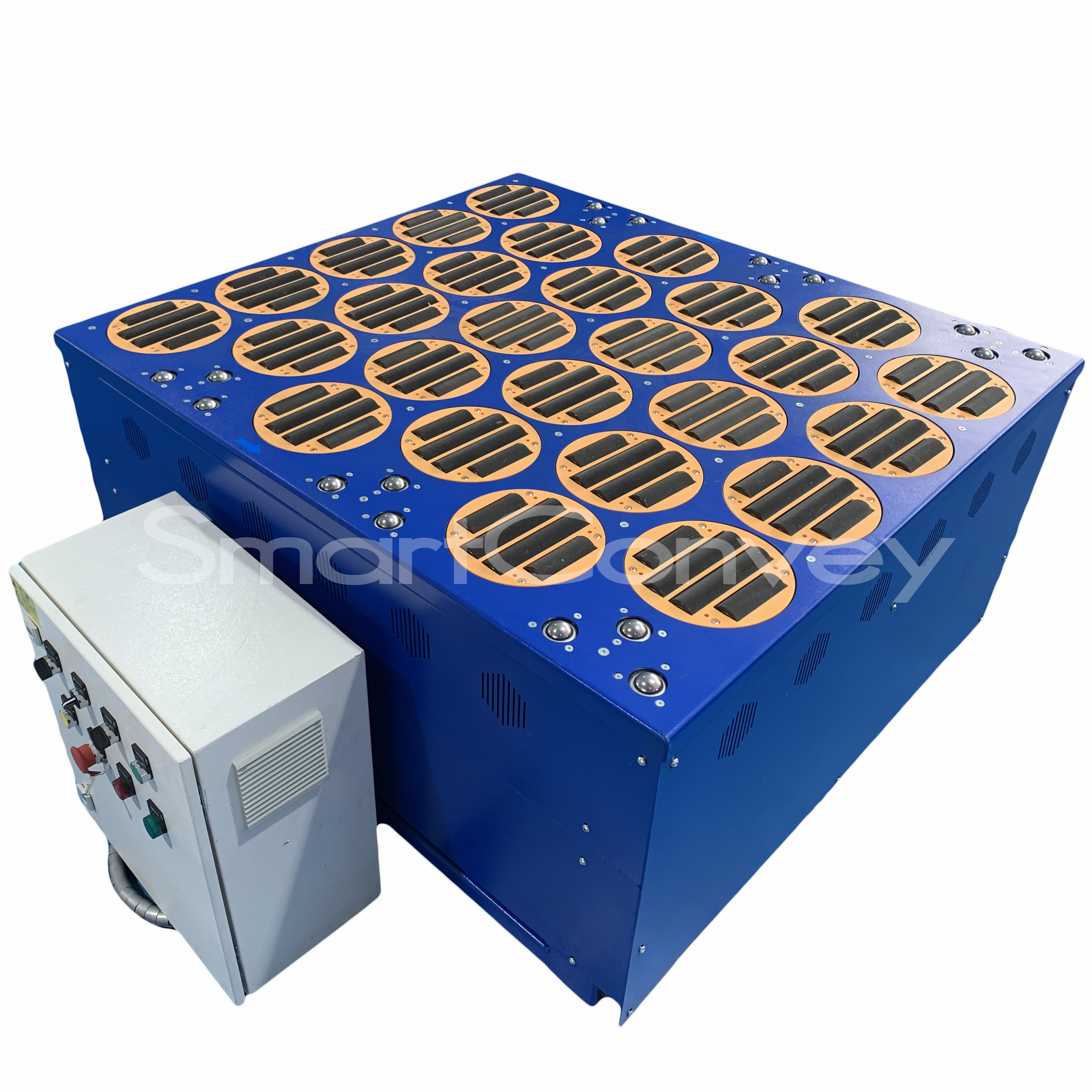

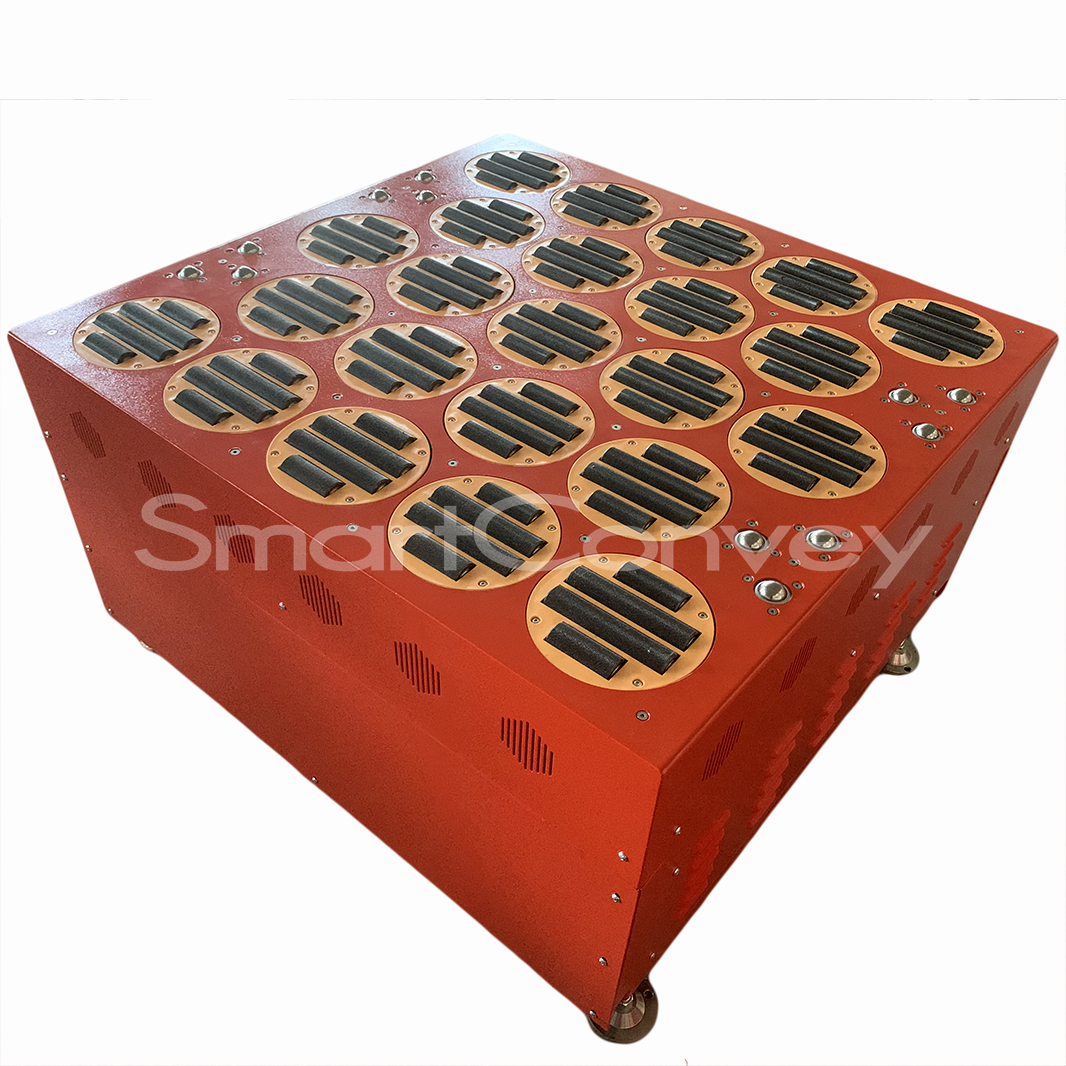

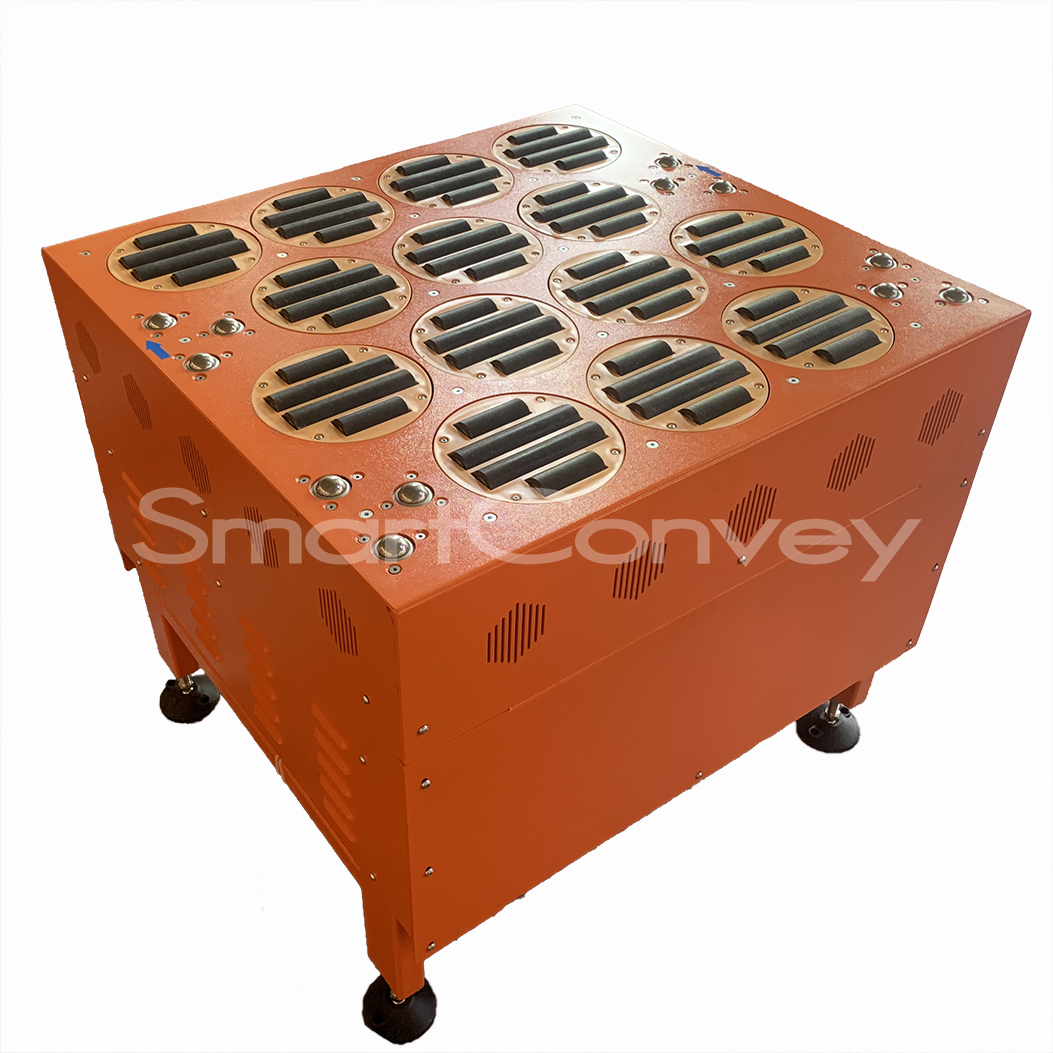

Electrical Friction Wheel Sorter

Simple construction design, reliable operation, and no need for frequent maintenance. Independently controlled, the sorting action can be achieved by simply receiving a signal, greatly reducing the time required for on-site commissioning. The sorter uses servo motors and sensing and detection of the pendulum movement, interlocked with the sensor signal, for fast action response and stable and reliable sorting. The sorting steering mechanism is linked by spherical bearings. The sorting angle can be fine-tuned, allowing for more flexibility in on-site commissioning. The equipment is equipped with adjustable feet, which can now be flexibly adjusted to the actual situation.

• Easy layout and maintenance with the modular design of the units and the embedded combination structure, sorting outlets can be placed anywhere on both sides of the conveyor line.
• Flexible and stable sorting operation in-line multi-row gimbal technology prevents vibration and damage to the goods being conveyed. Stable and flexible sorting of goods from light loads to heavy loads of up to 70 kg.
• Customisable The angle rotation is powered by servo motors and has a resolution of less than 1 degree for custom angles from 0 to 90 degrees. Suitable for high throughput and large parcels.
• High resolution Each wheel is an independent power unit, designed specifically for tell-tale sorting, which can be carried out simultaneously in both directions. Polyurethane bail rollers provide sufficient drive power to minimize speed loss during sorting.
• Low noise new environmentally friendly materials and noise reduction technology, with a noise level as low as 75dB
• Energy-saving lightweight materials and low energy consumption design construction
