Inclined Telescopic Belt Conveyor
Product Description:
Applications:
Product Description:

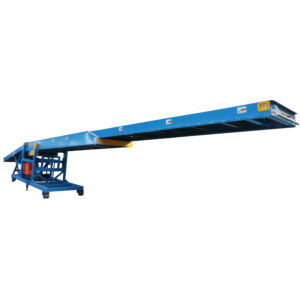

Inclined Telescopic Belt Conveyor could load and unload goods safely and efficiently with extendable length. It could largely shorten the goods-carrying distance for workers by adjusting the length and height of the conveyor, and save a lot in manual handling cost and handling time.
Applications:
Widely used in logistics, ports, docks, stations, airports, and warehouses, involving industries of the post, home appliances, food, tobacco, and light industry.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Ergonomic-suitable operation
- Simple, safe, and reliable operation
- Efficient for unloading and loading
- Suitable for various containers
- Convenient and easy for maintenance
- Loading capacity up to 60Kg/m
| Model Example | ||||||||
| Model No. | Section | Specifications (5 meters by 3.8 meters) | Standard belt width | Climbing move type | ||||
| K8 | A2 | 5.0/3.8 | 800 | PY | ||||
| K8-A2 telescopic belt conveyor specification | (mm) | |||||||
| Model | Section | L1 | L2 | L3 | L4 | L5 | H1(min) | (Standard belt width)BW |
| K8-A2-5.0/3.8-800-PY | 2 | 5000 | 3800 | 7300 | 4000 | 10100 | 1750 | 800 |
| K8-A2-6.0/4.8-800-PY | 2 | 6000 | 4800 | 9300 | 4000 | 9100 | 1750 | 800 |
| Main component models | 1. Conveyor belt: 3.0T black cutting-resistant belt 2.With drive motor: SEW-2.2KW 3. Telescopic motor: SEW-0.75KW 4.Electronic control components: Schneider | |||||||
Inclined telescopic belt conveyor are designed to overcome specific challenges, such as loading at low angles or the need for adjustable lifting angles. Let’s explore their features and advantages.
Ideal Applications
Inclined telescopic belt conveyors find their ideal application when there is a need to load materials at a low angle. These conveyors can be adjusted to accommodate various lifting angles, providing flexibility and adaptability to suit different operational requirements.
Adjustable Lifting Angles
The ability to adjust lifting angles is a significant advantage of inclined telescopic belt conveyors. This feature allows for seamless loading and unloading operations, ensuring efficient material transfer even in complex scenarios.
Convenience of an Integrated Belt System
Unlike other types of conveyors, inclined telescopic belt conveyors feature an integrated belt system. This eliminates concerns related to belt gaps, ensuring a smoother and more reliable material transfer process. Additionally, the absence of belt gaps simplifies maintenance and reduces the risk of material spillage.
Detailed Structure
- Operating Logic Guidance
The extension and retraction of the telescopic arm are driven by one set of motor controls, and the conveying belt forwarding and reversing are driven by another motor control.
A hydraulic cylinder and hydraulic power unit control the overall conveyor height up and down.
Control System Part:
Featured Details Parts:
