Mobile Telescopic Belt Conveyor

Advantages:

  • Ergonomic-suitable operation
  • Simple, safe, and reliable operation
  • Efficient for unloading and loading
  • Suitable for various containers
  • Convenient and easy for maintenance
  • Loading capacity up to 60Kg/m
Basic Dimensions
TypeModel No.SectionL1(mm)L2(mm)L(mm)H1(mm)H2(mm)Belt Width(mm)Counterweight(t)
Electrical Roller TypeSC-T800S4M-5.0/10.0E4500010000150009207508003
Drive Roller TypeSC-T800S4M-5.0/10.0D4500010000150009207508003
Electrical Roller TypeSC-T800S4M-6.0/12.3E4600012300183009207508003
Drive Roller TypeSC-T800S4M-6.0/12.3D4600012300183009207508003
Electrical Roller TypeSC-T800S4M-7.0/15.0E4700015000220009207508004
Drive Roller TypeSC-T800S4M-7.0/15.0D4700015000220009207508004
Electrical Roller TypeSC-T800S4M-7.5/16.0E4750016000235009207508004
Drive Roller TypeSC-T800S4M-7.5/16.0D4750016000235009207508004
Basic Specification
ItemSpecification
Belt drive typeMotor drive or electrical motor drive
Telescopic typeMotor drive
Moving typeBattery power drive
Conveying directionForward and reverse
Conveying speed20-45m/min, variable
Telescopic speed4-7m/min, variable
Moving speed15-40m/min, controller speed regulation
Rated loading capacity60kg/m
Power supplyAs your requirements
Belt interface typeSteel buck linking
Frame plate materialBS700MC high manganese steel
Surface treatmentSprayed

Mobile Telescopic Belt Conveyor could load and unload goods safely and efficiently with extendable length. For the mobile type of telescopic belt conveyor, Its biggest advantage is the ergonomic operating conditions. The overall movement of the equipment in any direction can be realized by controlling the handle to reach the position specified by the customer. Then, by operating the button, the telescopic movement of the telescopic machine can reach the position required by the operator, and easily and efficiently complete loading and unloading of goods. The overall and telescopic movement is quickly fed back to the operator through motor driving.

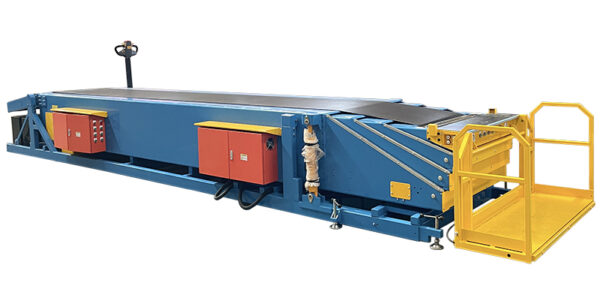

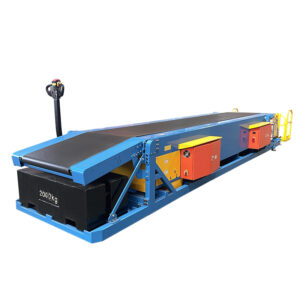

Overall Structure





  • General control box
  • Durable anti-slip PVK belt
  • Hydraulic power unit & battery box
  • Hydraulic cylinder
  • Convenient side control
  • Front control panel
  • Free extend and retract
  • Handling bar





Operating Logic Guidance

The battery powers the overall floor movement. The conveyor can move horizontally, front and rear, left and right, and can also rotate in any direction.

The extension and retraction of the telescopic arm are driven by one set of motor controls, and the conveying belt forwarding and reversing are driven by another motor control.

The overall conveyor height up and down is controlled by a hydraulic cylinder and hydraulic power unit.



Control System Part:

Side control buttons: Forward, retract, up, down.
Front control panels: Load, unload, stop, light switch, alarm, emergency stop, 2 LED lights.





















Main electrical box panel: Stop, power indicator, load, unload, forward, retract, up, down;
General switch and cooling vent.
The main electrical box inside components: Delta inverters, Siemens PLC, and other electrical parts.



















Featured Details Parts:

Chargeable Lithium Battery Pack: To drive the moving of the telescopic belt conveyor.
Battery Charger

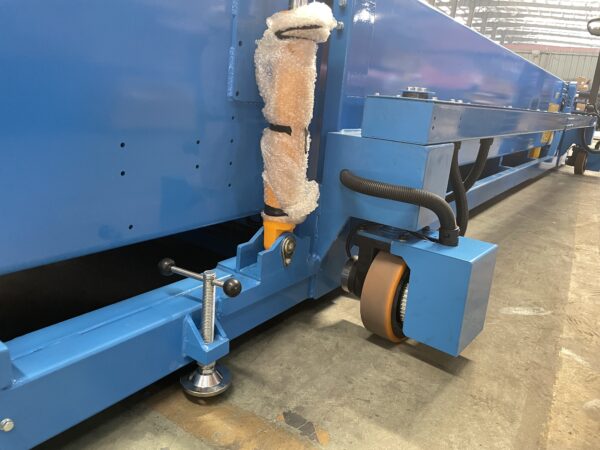

Hydraulic Cylinder: To adjust the conveyor height.
Durable special PVK belt for telescopic conveyor: Ammeraal brand belt
Handling Bar: Could easily operate moving directions on the floor.
Anti-pinch design: could make the conveyor more compact



















Mobile heavy-duty caster wheel: Totally 6 pcs, each could support 3t.
Front-end collision avoidance device.
