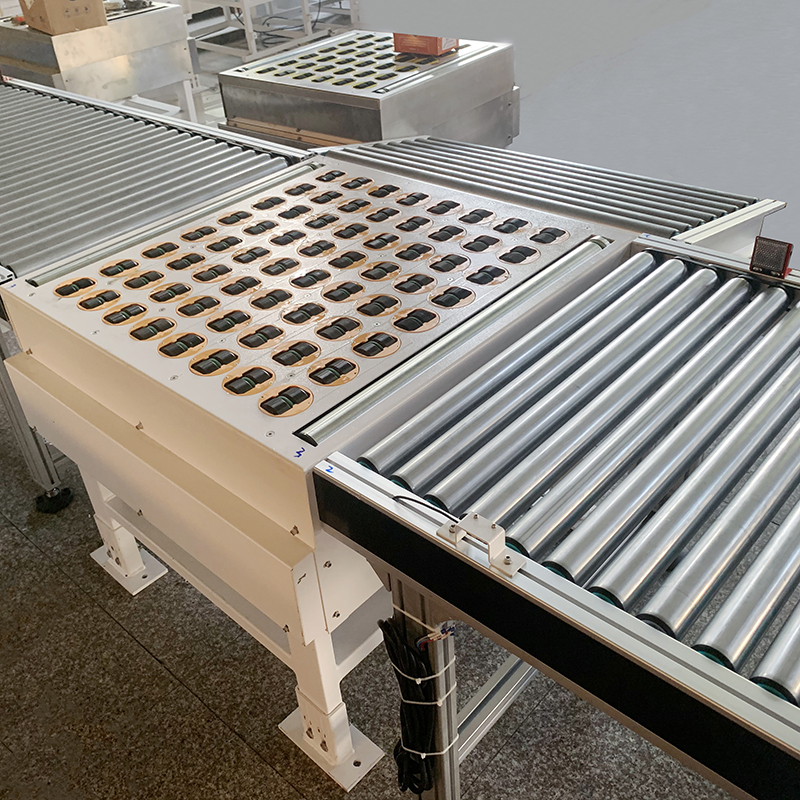

O-Belt Wheel Sorter
Product Description:
Applications:
Product Description:
O-Belt Wheel Sorter design is made in a wheel piece, without any gaps to ensure a longer service life. O-belt wheel sorter is used for belt conveyor systems or roller conveyor systems.
Applications:
Widely used in Logistics, Warehouses, E-commerce, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plants, Food and beverage Factory, Farms, Retail, Food Shops, and Express industries.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Specially designed for high-speed and bi-directional sorting
- Maximum sorting rate can reach 7200pcs/hour
- Could sort on both sides at the same time
- Use noise elimination technology, make the noise less than 75dB
- Use lightweight material and low energy consumption design
- Use unit modular design and embedding combination structure
| Basic Information | |
| Model | O-belt Wheel Sorter |
| Frame Material | Carbon Steel Coated |
| Color | Orange/Blue/Black/Gray/White/Customized |
| Dimensions(L*W*H) | 560*488*800mm |
| 650*588*800mm | |
| 740*688*800mm | |
| 830*788*800mm | |
| 920*898*800mm | |
| 1010*988*800mm | |
| 1100*988*800mm | |
| Could be customized | |
| Performance | |
| Conveying Speed | 60~120m/min(Adjustable) |
| Sorting Capacity | 7200pcs/hour(Max) |
| Diverting Angle | 30~90 Degree |
| Discharge Direction | Right, Left and Forward |
| Operating Temperature | -10~40℃ |
| Electrical | 40W, 48V per wheel |
| Interface Options | RS485/232, Ethernet, IO |
| Max Loading Weight | 50kg/㎡ |
| Noise | Less than 75dB (distance within 1.5m) |

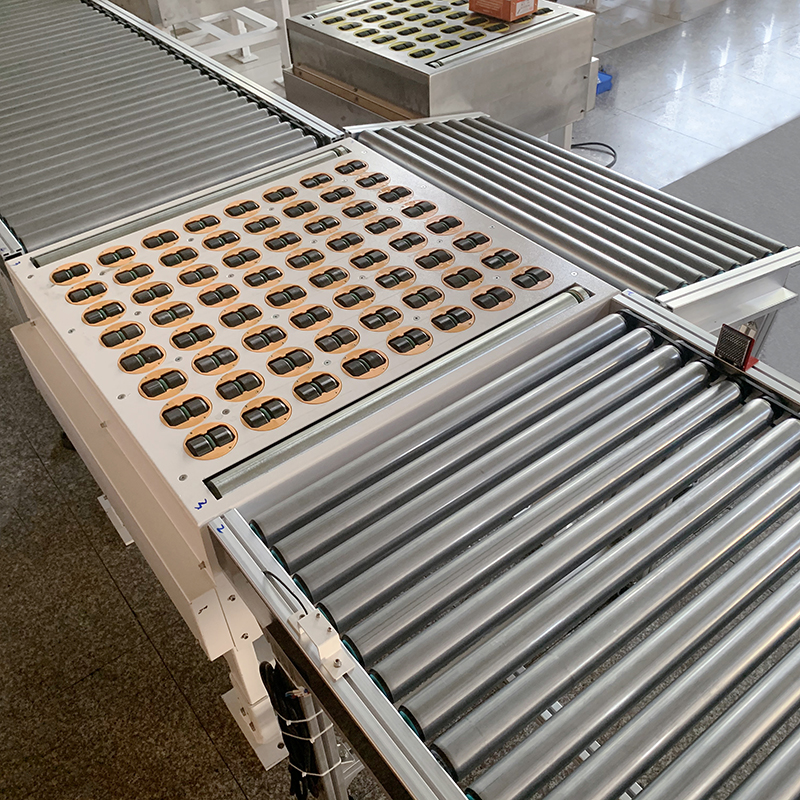

O-belt Wheel Sorter
The features of this design are to track conveying goods accurately and stably, as well as set sorting positions at any position along both sides of conveyor lines conveniently. This could satisfy customers with different sorting requirements, and also achieve maximum sorting rate and its best economical efficiency.
- High Sorting Speed
- Specially designed for high-speed and bi-directional sorting
- Could sort on both sides at the same time
- Maximum sorting rate can reach 7200pcs/hour
- Low Noise
- Use noise elimination technology, make the noise less than 75dB
- Energy Conservation and Environmental Protection
- Use lightweight material and low energy consumption design
- Just needs to be equipped with low power motor to drive and operate the conveyor belt
- Flexible and Stable Sorting Operation
- Online multi-row swivel wheel technology prevents conveying goods from vibration and damage
- Stably and flexibly sort goods from light duty to a maximum 50kg heavy duty range
- Easy for layout and maintenance
- Use unit modular design and embedding combination structure
- Sorting Exits could be placed at any position along both sides of the conveyor line
