Pallet Lifting Conveyor System
Product Description:
Applications:
Product Description:

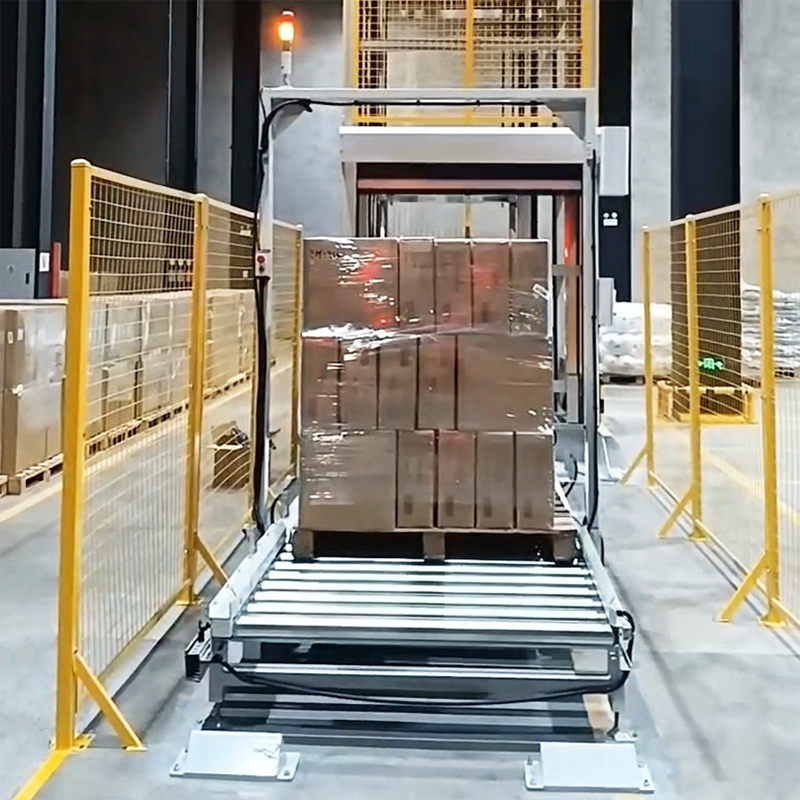

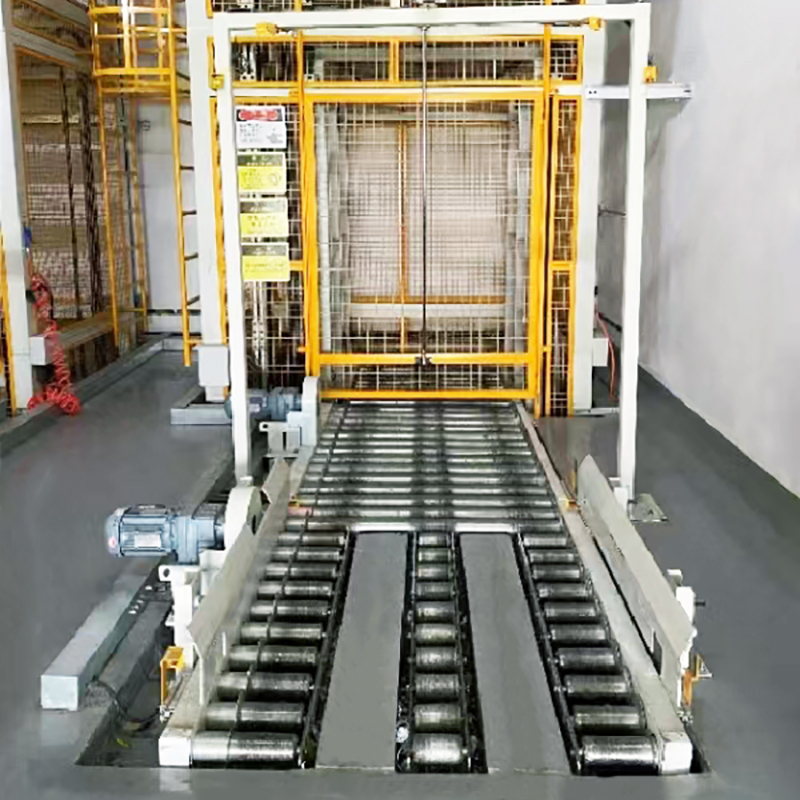

The pallet Lifting Conveyor System is a logistics solution employed in multiple sectors to raise pallets to the desired height. In its simplest form, pallets lifting conveyors are widely used in warehouses to elevate pallets to the second floor or more or reverse.
Applications:
Such Pallet Lifting Roller Conveyor Systems could be widely used in material handling, such as warehouses, distribution centers, production plants, etc. Besides, it could convey pallets empty or full within 1000KGS per pallet. Besides beer factories and drinks factories, it can also used in food factories, plastic factories, daily goods factories, etc.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- A Roller Conveyor System could convey the heavy load pallet
- More flexible and accurate control on each pallet, to help the factory improve the efficiency.
- Our system is with safety design. The vertical conveyor structure base has with anti-fall buffer.
| Item | Parameter |
| Pallet Dimension | 1200*800 or others |
| Pallet Weight | 1000KGS/Pallet |
| Conveyor Capacity | Around 50-70 Pallets/Hour |
| Vertical effective height | 6000mm or more |
| Conveyor Motor | SEW Motor |
| Lifting Conveyor Frame | 100mm*100mm*5mm Square tube |
| Lifting Speed | 50Meter Per Minute |
| Conveyor Roller | 76mm diameter, Carbon Steel |
| Electrical Items | Siemens, Omron, Schneider |
| PLC Control Mode | 2 Types |
The pallet Lifting Conveyor System is a more sophisticated version and is used in automated storage and retrieval systems. Driven by an electric motor — just like a goods lift ― pallet lifting conveyors are present in warehouses with conveyor systems, such as automated storage and retrieval systems. In this case, they can serve to connect different conveyor line levels, raise pallets for another machine to pick them up and deposit them on a rack, automate truck loading and unloading, etc.
