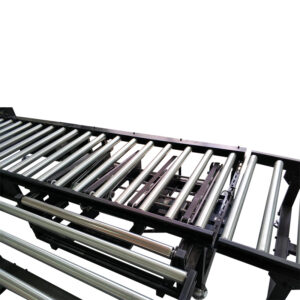

Pop Up Conveyor
Product Description:
Applications:
Product Description:
A pop-up conveyor is used to lift heavy products, such as containers, cartons, or boxes, and divert them at a 90° angle to another conveyor line. Its main function is to achieve fast, safe, and efficient transfer of goods between different locations by utilizing hydraulic or mechanical power for lifting and transition operations.
Applications:
The pop-up conveyor is widely used in food and beverage industries, warehouse and logistics industries, automotive industries, medical device industries, appliance industries, glass, and other industries.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Simple and modular structure
- Easy to maintain and disassembly
- Large loading capacity, suitable for heavy products
- Stable lifting and reliable positioning
- Convenient and efficient for transferring and diverting
| Item | Specifications |
| Type | Roller transfer type/ Chain transfer type |
| Roller material | Stainless steel/galvanized steel |
| Diverting efficiency | 1500-2000pcs/h |
| Transfer speed | 20-50m/min |
| Width | 400-2000mm |
| Length | 500-1500mm |
| Stroke | 10-50mm |
| Ambient temperature | 0 ～ 40℃（No freezing） |
| Vibration | 0.5G or less |
| Installation | Indoor |

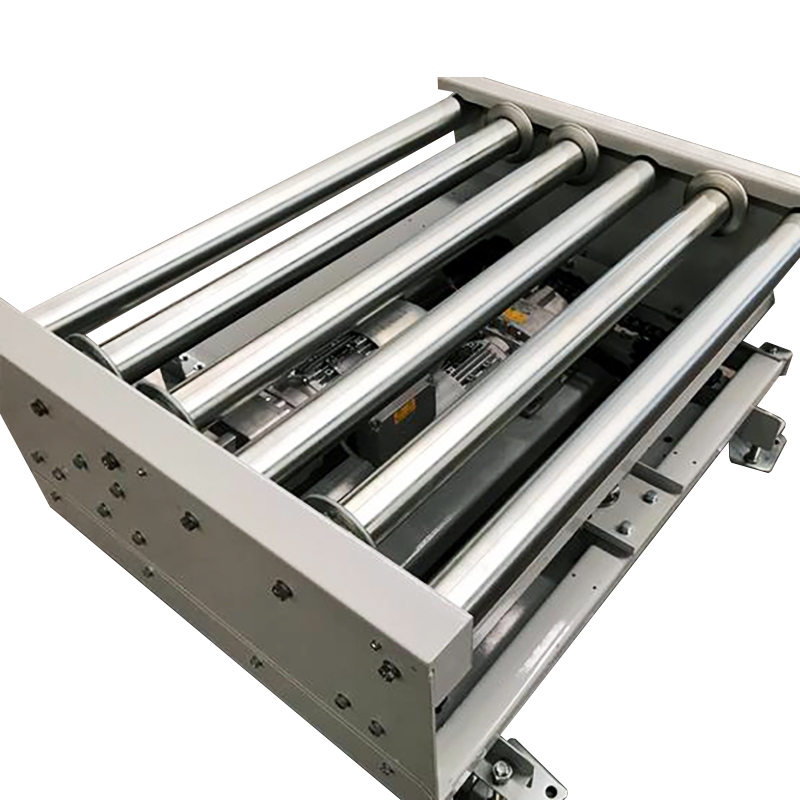

Lifting Type Jacking Flat Roller 90 Degree Transfer Machine Pop Up Conveyor For Cartons and Boxes

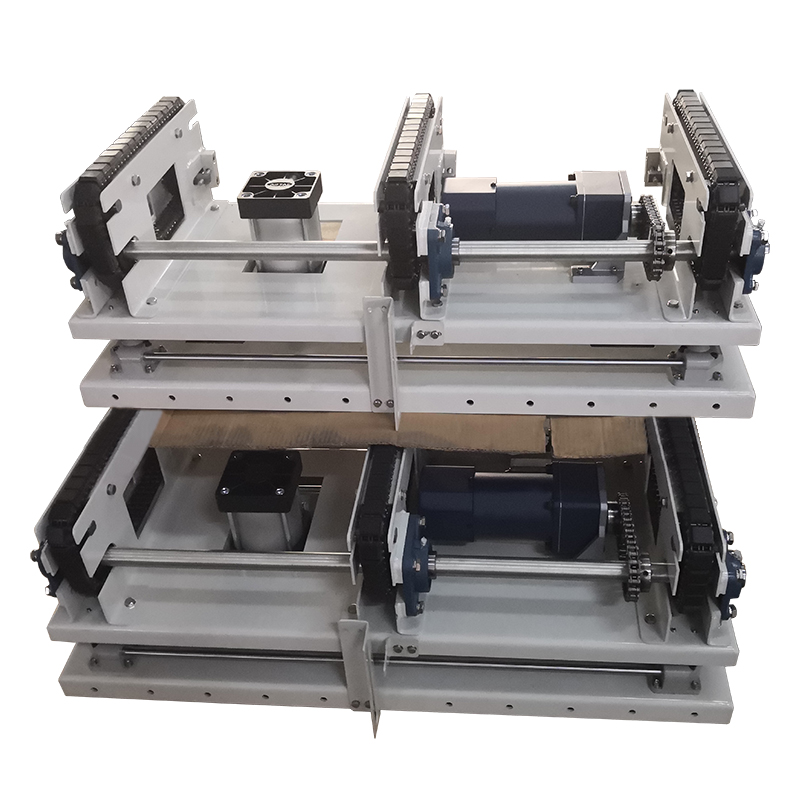

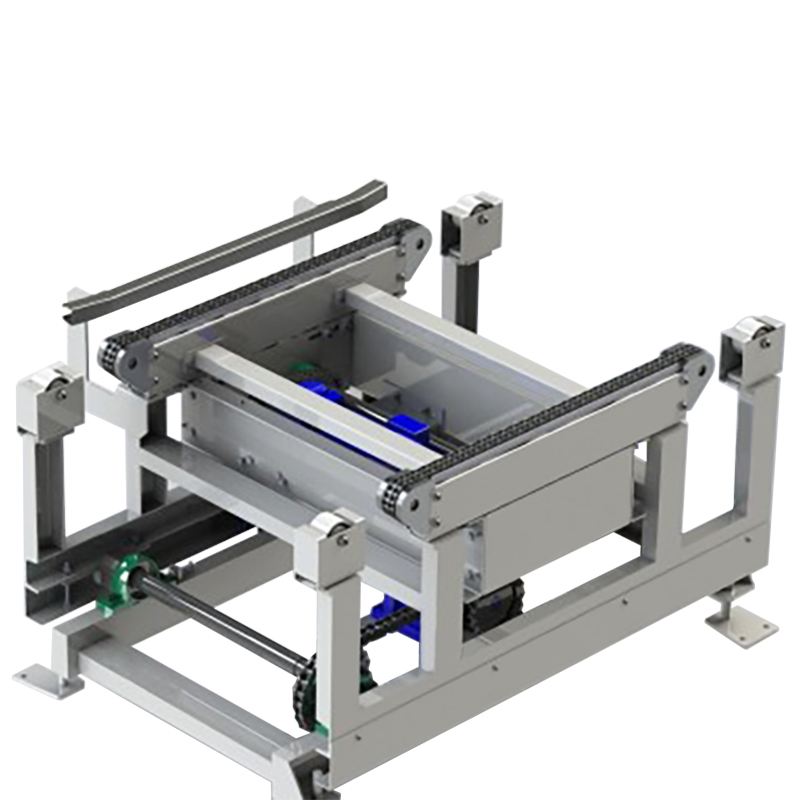

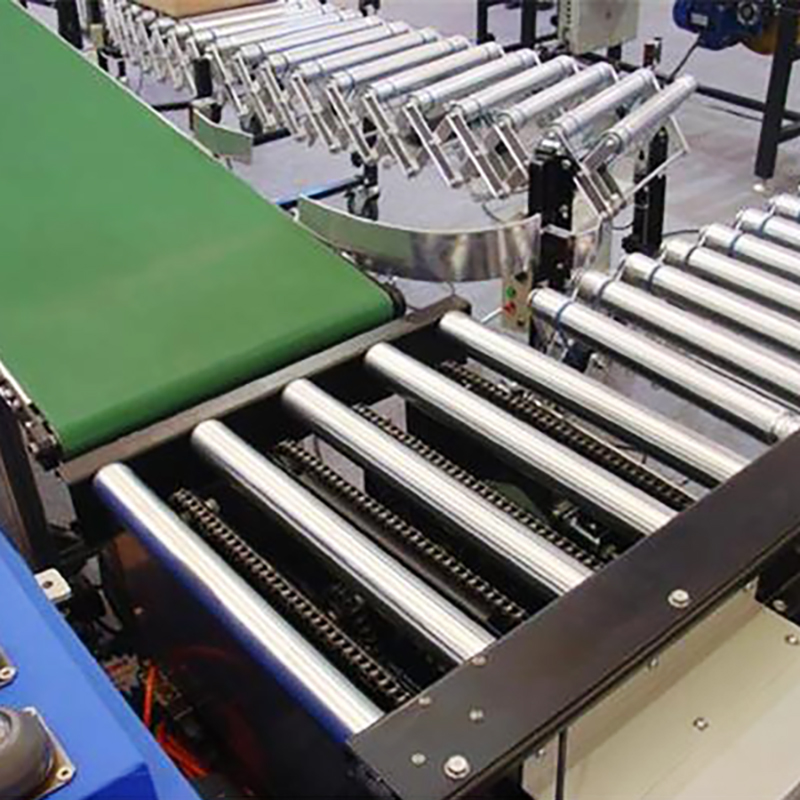

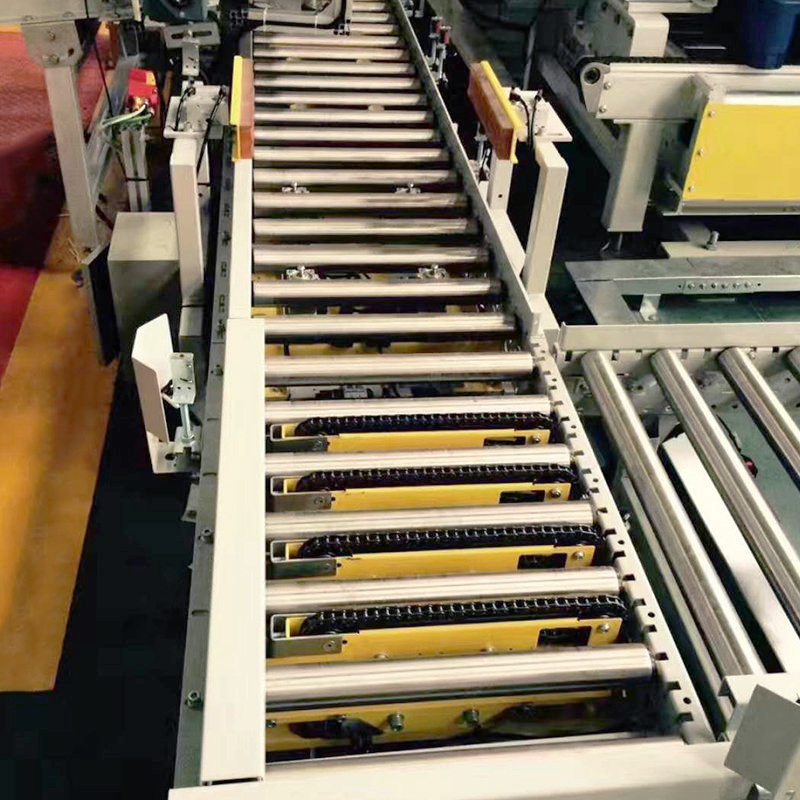

Pop up conveyor is used to change the conveying direction of items and move items from cross lanes into or out of the main conveyor line. It is composed of multiple components, including a lifting device, conveying device, control system, etc. Among them, the lifting device is a key part to achieve the vertical movement of the products, usually using mechanisms such as hydraulic cylinders or screw transmission. The conveying device is responsible for moving the lifted object horizontally to the target position. Common structures include rollers or belts. The control system is the intelligent core of the entire mechanism for precise control and monitoring of lifting and movement.
Key parameters:
Transfer speed: 20-50m/min;
Diverting efficiency: 1500-2000pcs/h;
Roller material: Stainless steel/galvanized steel;
Width: 400-2000mm;
Length:500-1500mm;
Stroke: 10-50mm;
Transfer machine type: Roller transfer/chain transfer
