Logistics Parcel Sorting Vision Singulation Conveyor
Product Description:
Applications:
Product Description:

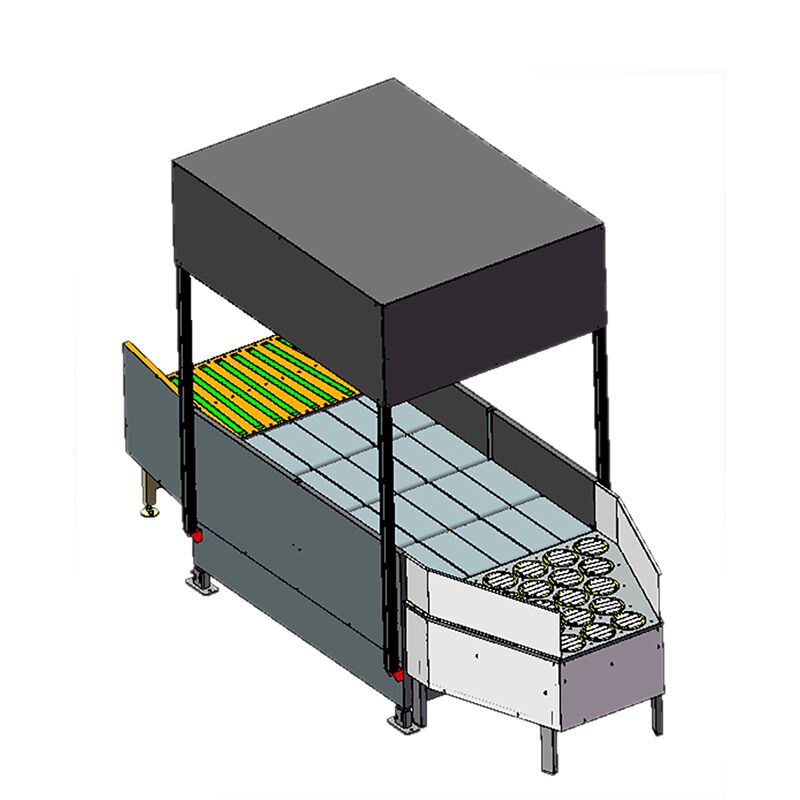

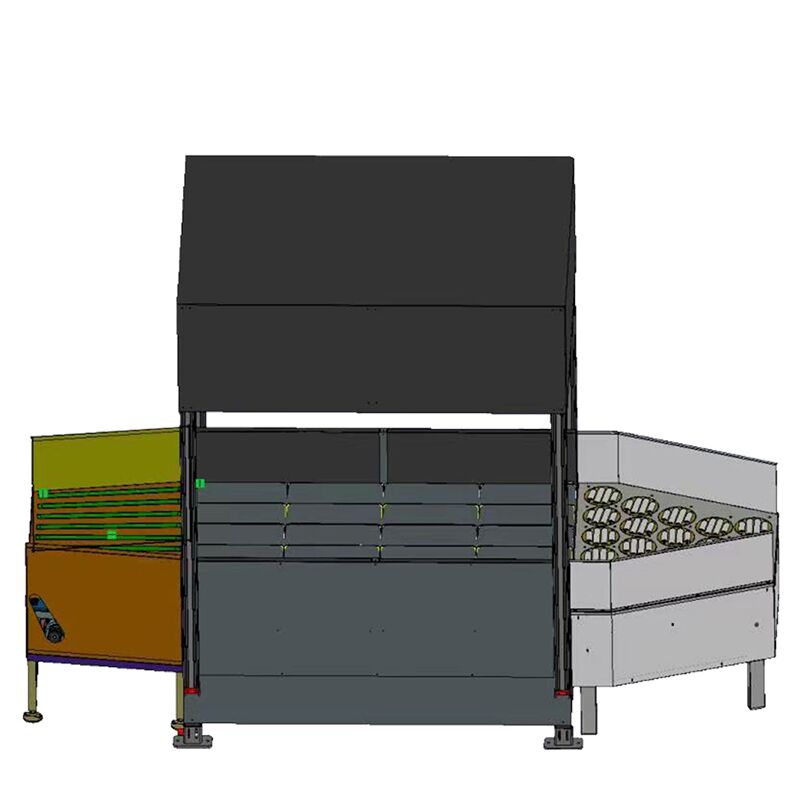

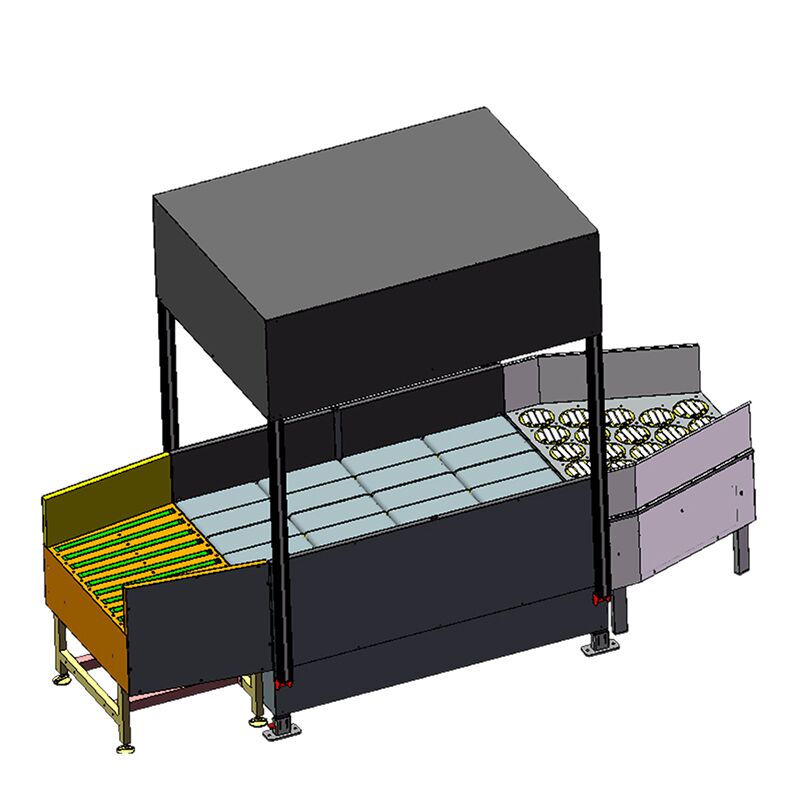

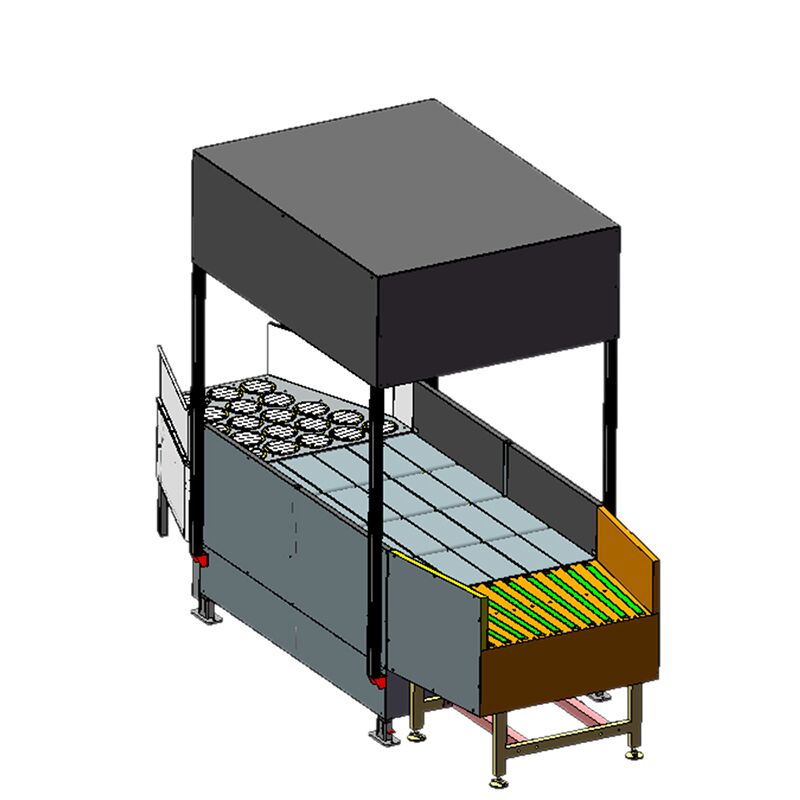

Singulation Conveyor is mainly composed of a central section, a separation module, a divergence module, and a vision system module. It is applied to the front part of various automated sorting cases.
Applications:
Widely used in the Food and Beverage industry, logistics industries, express industries, Packaging, Pharmaceuticals, Cosmetics, and other industries.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- High Precision contour recognition algorithm.
- High stability and could resist ambient light interference.
- Separating rates as high as 99%.
- High separating rate as max 5000pcs/hour.
- Modular and stable design, easy to install and maintenance.
Working Mode | Separation Mode and Pipeline Mode |
Working Efficiency | 5000pcs/hour |
Package Weight | 0.2-35Kg |
Package Size | 150*150*15mm-1000*1000*600mm |
Package Shape | Non-rolling packages |
Application Situation | 1) No limitation to the clutter and density of packages 2) Suitable for defuse reflection packages with surface reflectance larger than 10%. |
Speed of Divergence Module | 1.2-2m/s |
Separation Success Rate | ≥99% |
Working Temperature | -10~50℃ |
Working Humidity | 20%-90%RH(No moisture condensation) |
Singulation Conveyor automatically separates, stretches distances, and intelligently lines up mixed packages before the packages enter the automated sorting lines so that the messy packages become single rows “formation” according to the specified spacing to pass in an orderly manner and enter DWS or various automated sorting equipment in turn. Finally, a singulation system could greatly increase the success rate and accuracy of parcel sorting.
- Vision system control logic diagram
Advantages
- High Precision contour recognition algorithm, could locate packages as low as 15mm.
- The visual recognition system applies an infrared binocular camera, providing it with high stability and could resist ambient light interference.
- Self-developed distance control and adjustment could separate packages from the adhesion status of left and right, front and rear.
- Separating rates as high as 99%, could reduce manual operation errors.
- High separating rate as max 5000pcs/hour, support to separate various types of packages such as cartons, soft bags, snakeskin bags, etc.
- Modular and stable design, which is convenient for installation and maintenance.
