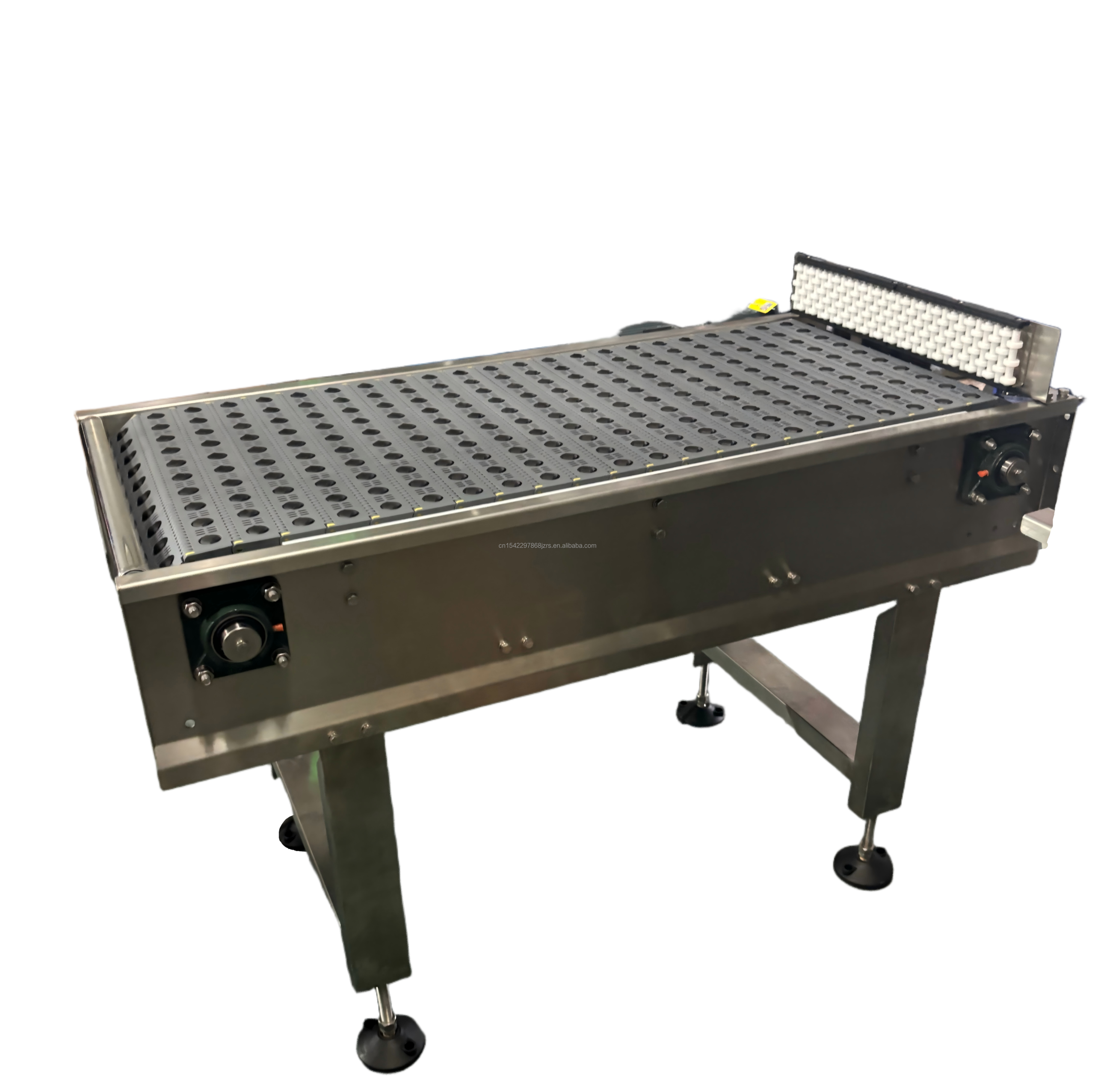

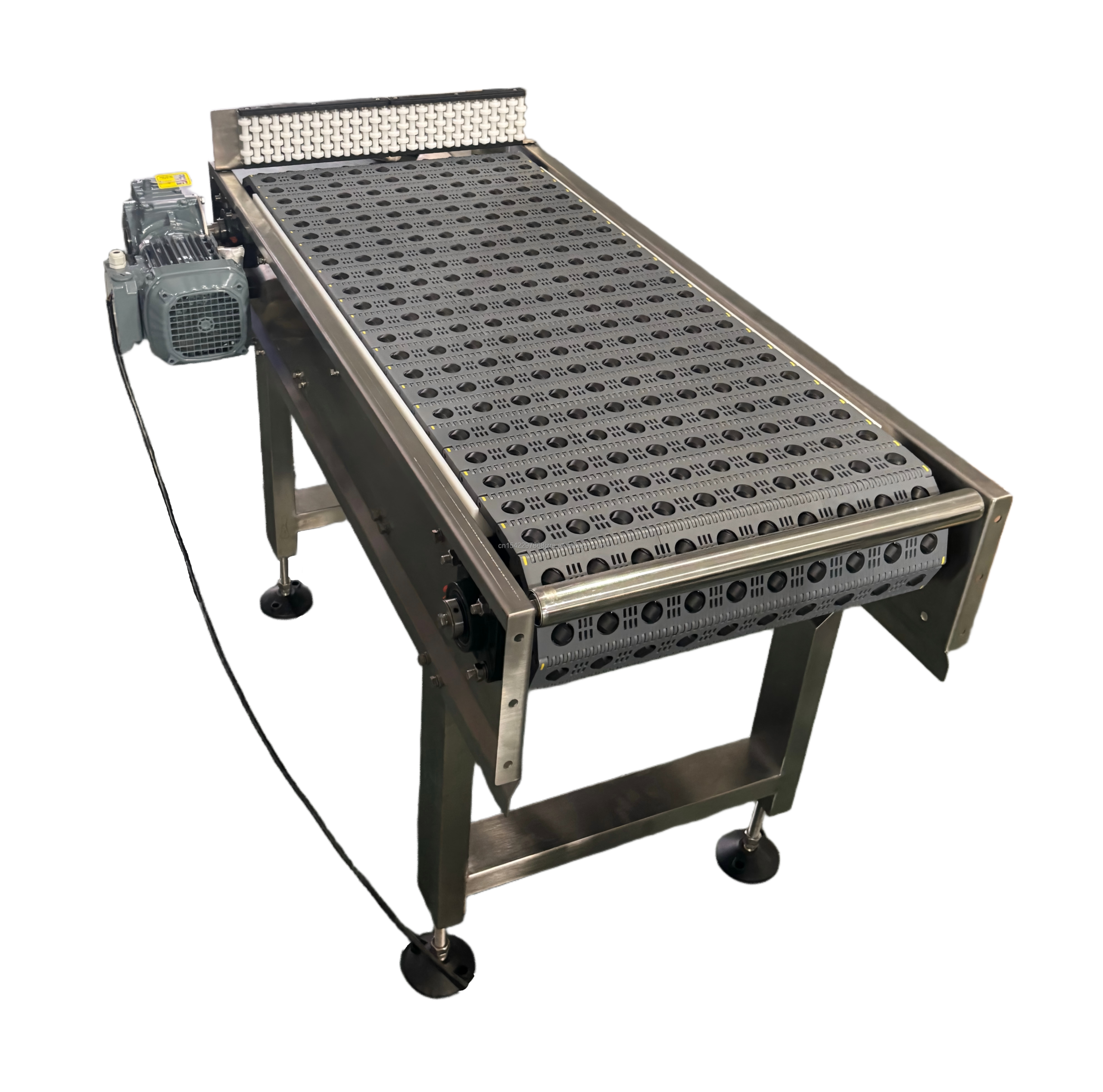

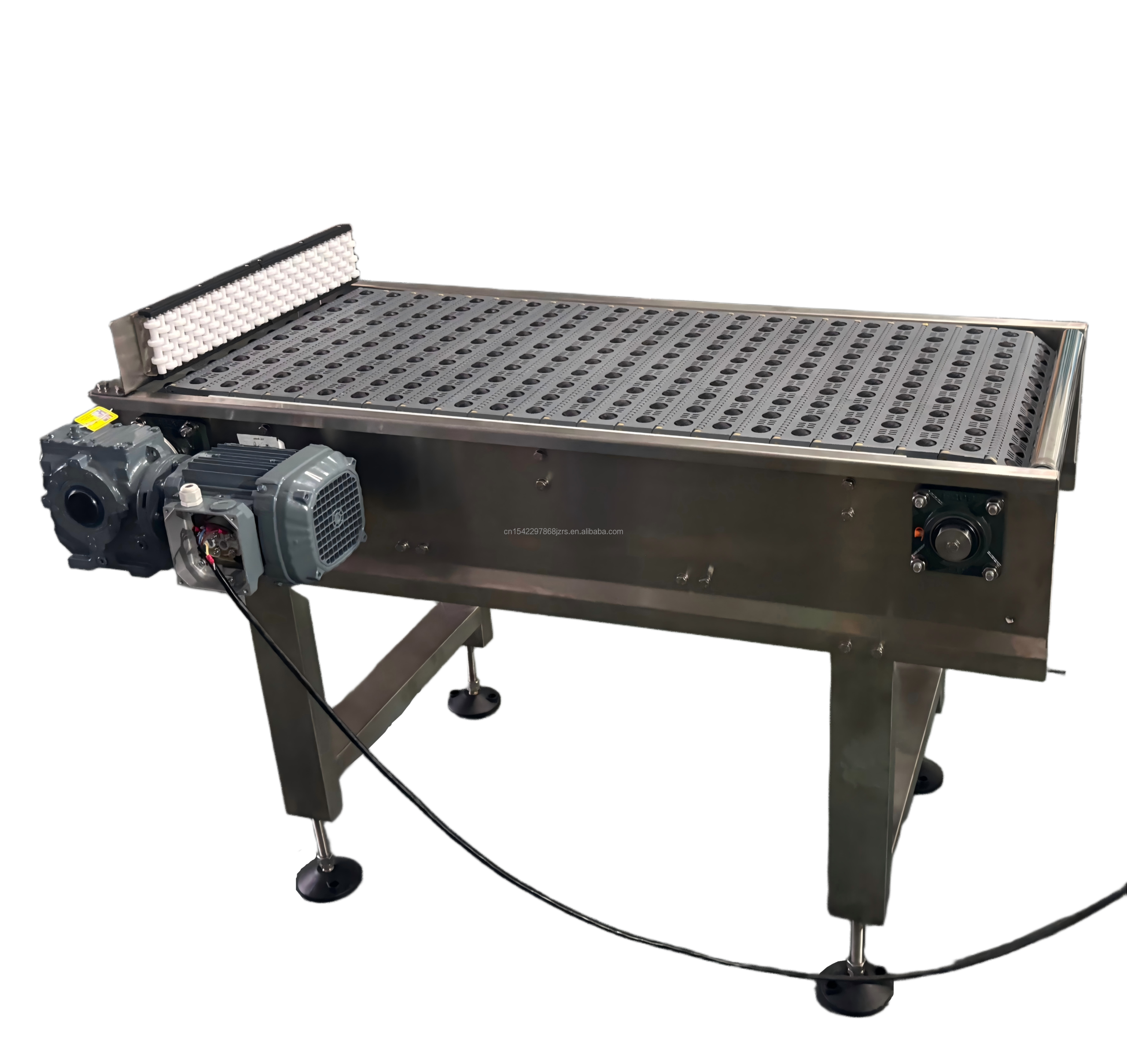

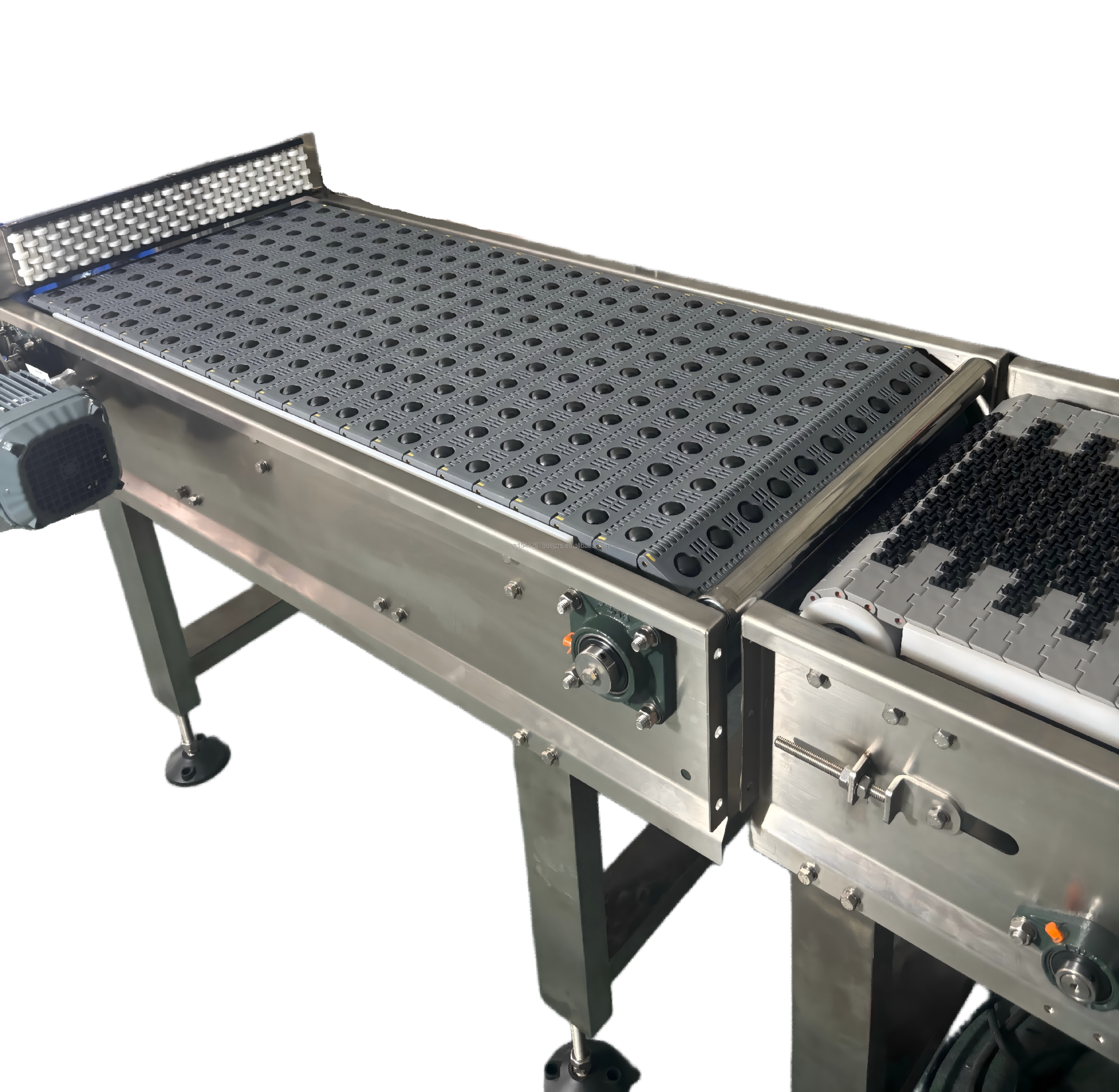

45° Ball Top Modular Belt Conveyor Gravity Curve Conveyor for Logistics Sorting
Product Description:
Applications:
Product Description:
A conveyor designed for stable carton turning transfer, featuring 45° ball modular belt and side ball guides to redirect boxes smoothly via gravity and inertia.
Applications:
- Logistics & Warehousing: carton sorting, box diverting, case turning lines
- Food Packaging: finished cartons of food products
- E-commerce Fulfillment: shipping carton handling
- Beverage Packaging: packaged beverage cases
- Pharmaceutical Packaging: medicine cartons
NEWS & EVENTS
- Tel: 0086 173 1754 7809
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
Cost-Effective Box Turning
The ball-assisted design enables smooth carton turning through gravity and inertia, eliminating the need for complex powered turning units and lowering operational costs.
Food-Grade Material
All contact components adopt food-grade material, complying with hygiene requirements for packaging and food processing applications.
Carton Integrity Protection
Balls on both the modular belt and side guides reduce friction during transfer, preventing scratches, deformation or damage to carton surfaces.
Motor Protection
Equipped with dust-proof and water-resistant motor cover, it shields the drive motor from contaminants and splashes for reliable operation.
Easy to Customize
Conveyor dimensions, belt layout, ball arrangement and other parameters can be customized to match customers’ site conditions and production needs.
Simple Installation
Modular assembly design allows fast on-site installation and commissioning, minimizing production downtime.
| Frame material | SS304/Carbon steel/Aluminum |
| Belt material | PP/POM |
| Conveyor dimensions | Customized according to customer’s requirements |
| Speed | 0-30m/min, adjustable |
| Motor | SEW/Ucan/Delta/Customized |
| Voltage | 220V/380V/415V |
| Power | 0.37-2.2KW |
| Application | Widely used in food and beverage, pharmaceuticals, cosmetics, packaging, and logistics industries, etc. |

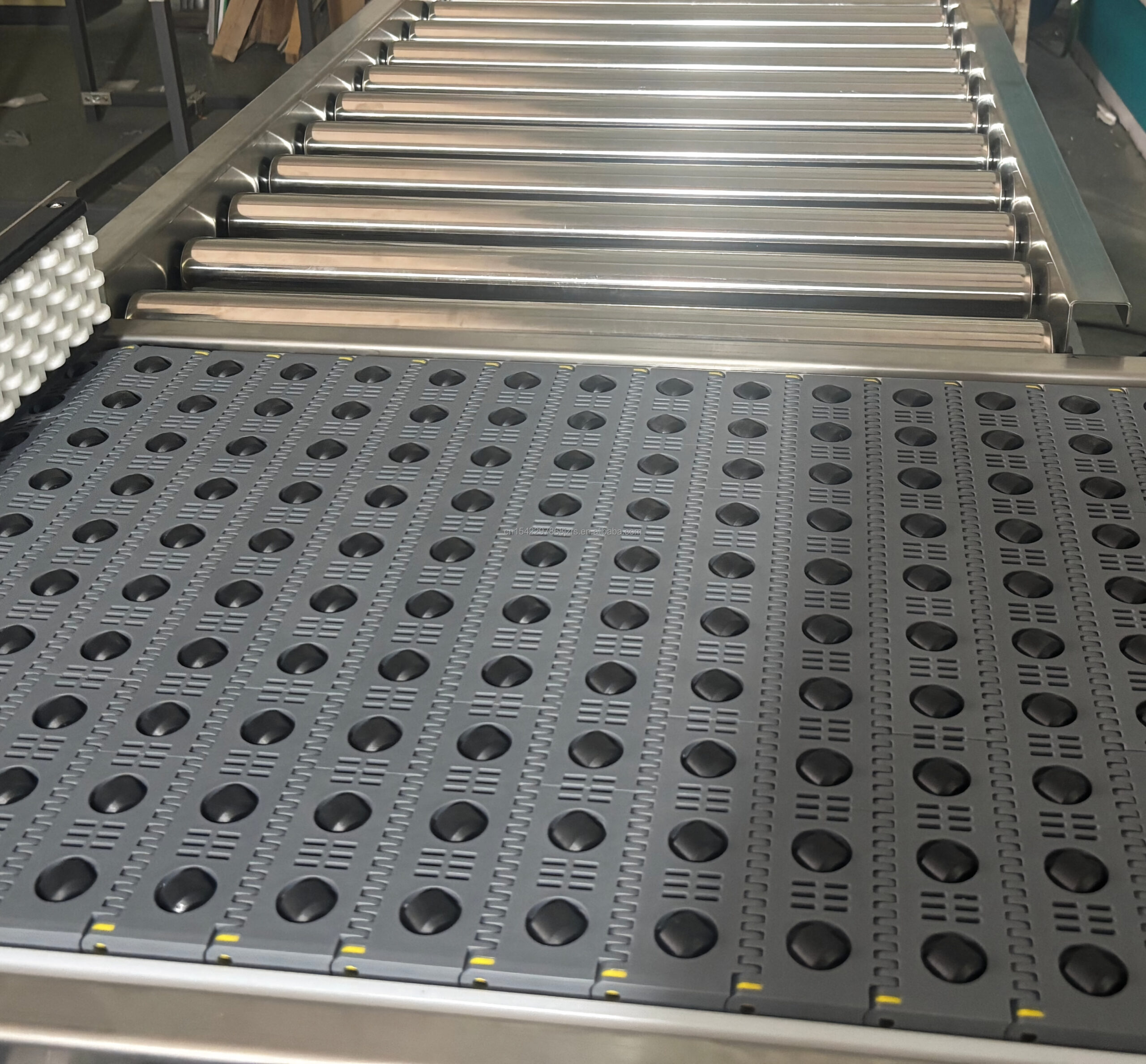

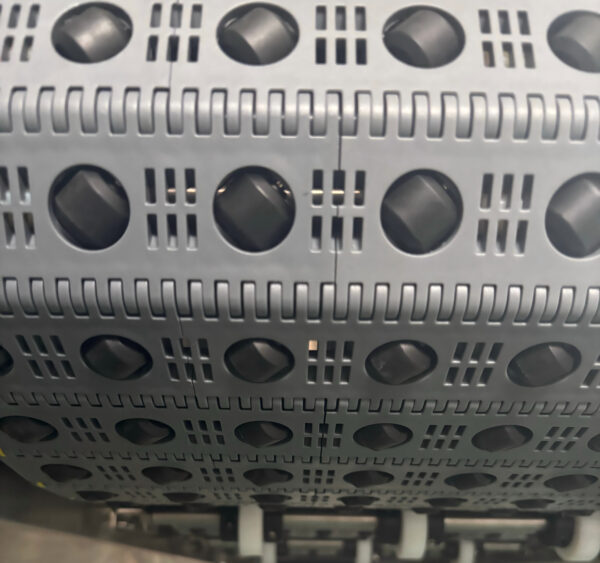

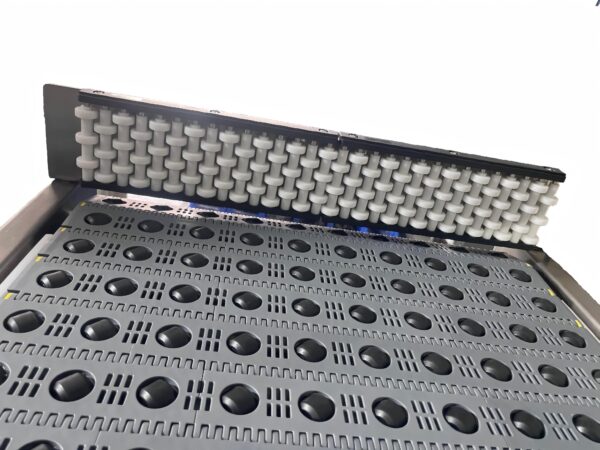

We fit the case-handling conveyor with a 45° ball modular belt and side ball guide rails.
When cartons travel on the line, the balls on both the modular belt and side guide contact the carton surface. By leveraging gravity and inertia, cartons achieve smooth directional turning without extra power-driven turning mechanisms.
The modular plastic belt structure enables easy maintenance and flexible layout adjustment. The ball design minimizes friction between cartons and the conveyor surface, protecting package integrity during turning transfer. This solution is ideal for carton sorting, diverting and 90°/curved turn applications in warehousing, packaging and logistics industries.
