Curve PVK Belt Conveyor
Product Description:
Applications:
Product Description:

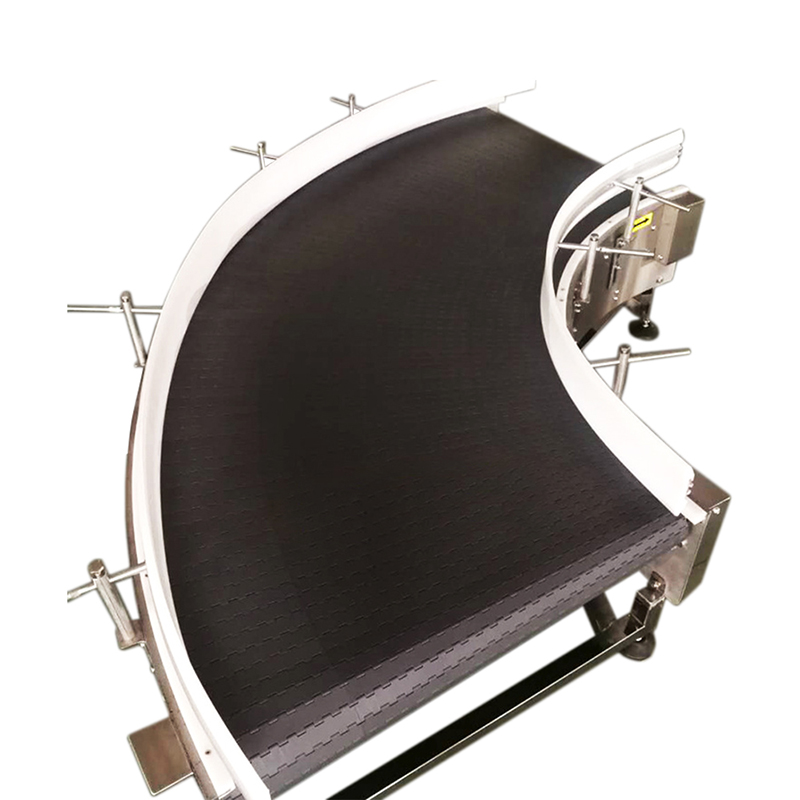

Curve PVK Belt Conveyor is made of flat PVC/PU/PVK belt, it plays an important role in turning part of whole conveying line, as a transition part.
Applications:
Widely used in the food industry, tobacco industry, medicine industry, printing industry, express and logistics industries, etc.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Modular design, easy to assemble, integral for indoor environments.
- Transport and storage tank and smooth bottom unit goods.
- Cost-effective, conveying in both forward and reverse directions.
- High speed, low noise, adjustable foot height.
- The surface has electrostatic spraying and a good appearance.
| Conveyor Form | Turning Belt Conveyor | Knife-edge Turning Belt Conveyor | |
| Belt Data | Belt Material | PVC, PU | |
| Belt Width(mm) | 250mm ≤ W ≤ 1000mm | 1000mm ≤ W ≤ 1600mm | |
| Conveyor Data | Frame Material | Carbon Steel Coated/Stainless Steel 304,316L/Aluminium | |
| Conveyor Width(mm) | 200 ~ 1700 ( Others to be Customized) | ||
| Conveyor Height(mm) | 700 ( Others to be Customized) | ||
| Turning Radius R(mm) | 250/400/600/900 | 400/600/900/1200 | |
| Turning Degree | 45°/90°/180°/Customized | ||
| Speed(m/min) | ≤ 45 | ||
Curve PVK Belt Conveyor turning degrees could be 45°,90°，180°, or other customized ones.
