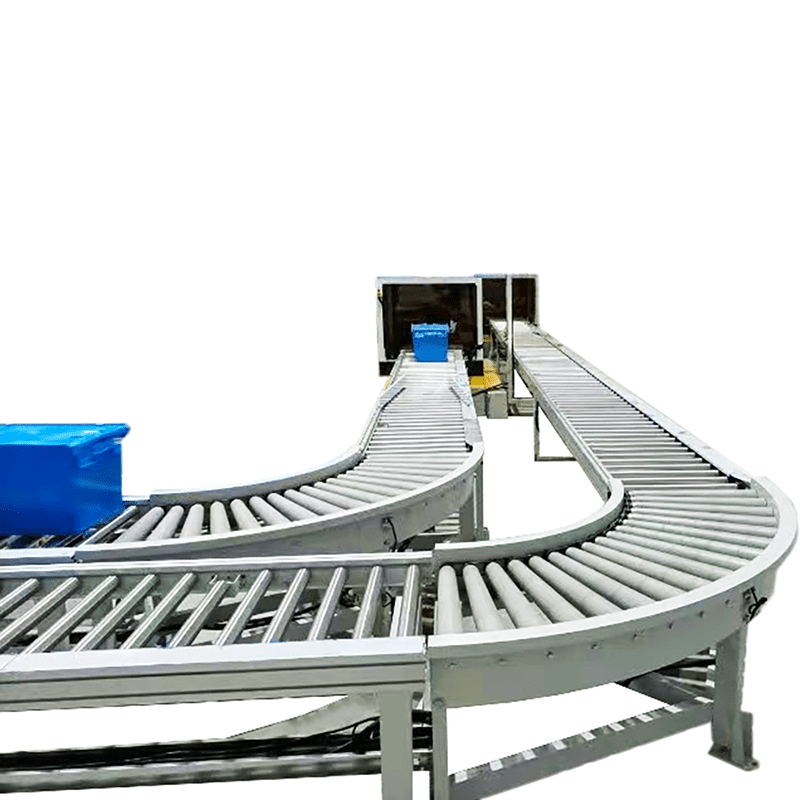

Curve Roller Conveyor

Advantages:

  • Flexible layout, complete the horizontal, turn, and tilt transport.
  • Stable and smooth conveying.
  • no relative movement between material and conveyor.
  • Low noise, low vibration, avoid damage to the products.
  • Modular design, easy assembly, large conveying capacity.
  • Conveyor with simple structure, easy for maintenance.
Conveyor FormCurve Roller Conveyor
Roller DataValid Roller Width(mm)300, 350, 400, 500, 600, 1000
Roller MaterialRoller TubeGalavanized CA,  Stainless Steel
SprocketCarbon Steel
Conveyor DataFrame MaterialCarbon Steel Painted
Conveyor Width(mm)400 ~ 1200  ( Other to be Customized)
Conveyor Height(mm)≥500  (  Other to be Customized)
Turning Radius r(mm)400, 600, 800
Speed(m/min)≤ 30

Curve Roller Conveyor plays an important role in turning part of the conveying line, as a transition part.
