Curved Roller Conveyor
Product Description:
Applications:
Product Description:

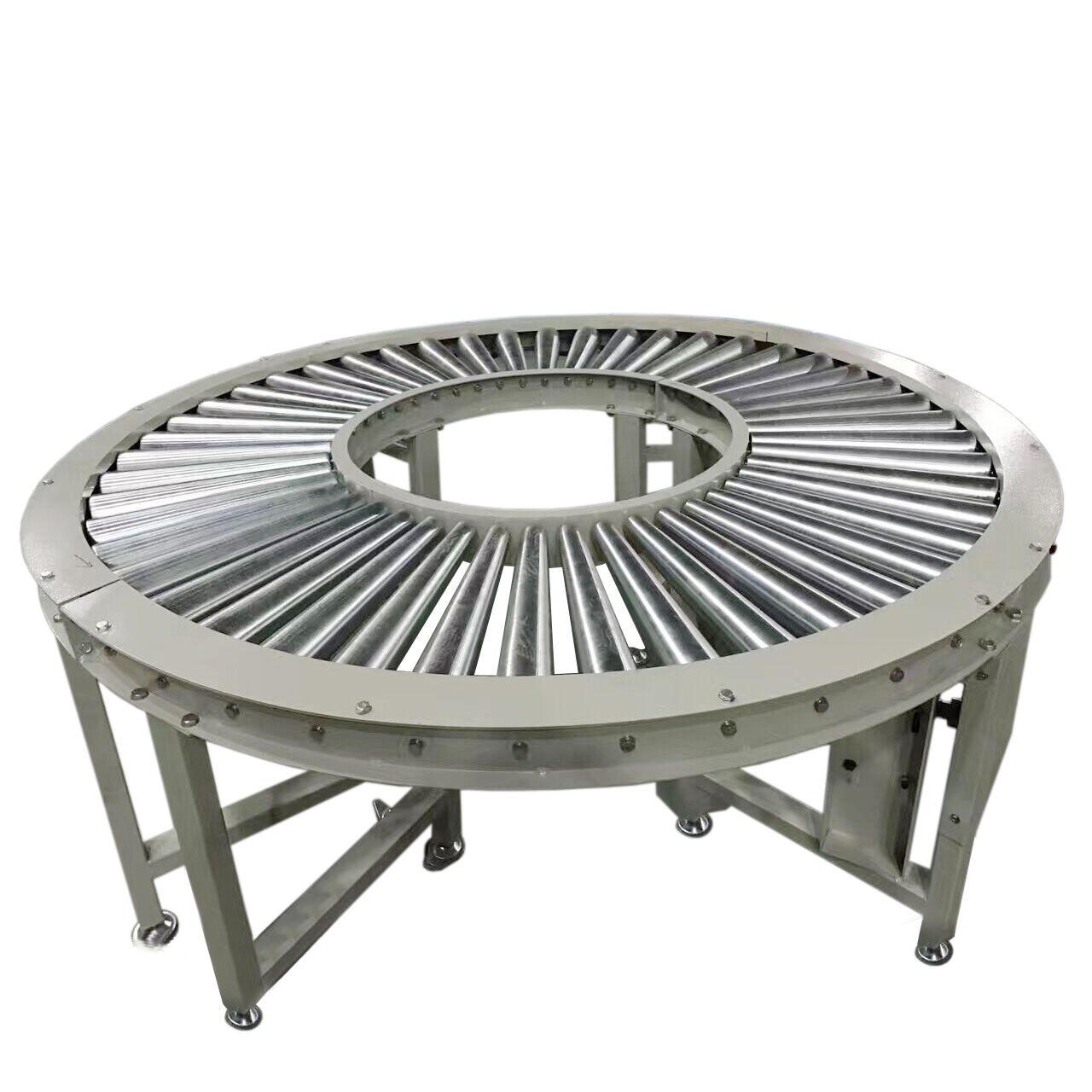

Curved Roller Conveyor uses cone rollers as the carrier, which can transport the products along the curve smoothly. There are single-chain drives and double-chain drives.
Applications:

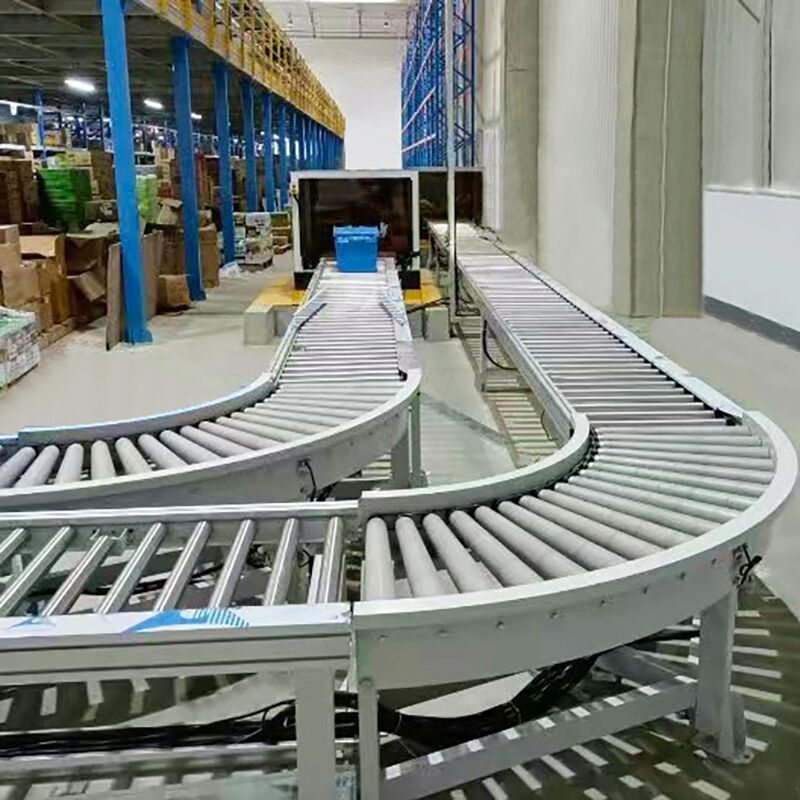

Widely used in the logistics industry, the tobacco industry, the tire industry, the printing industry, express and logistics industries, etc.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- Flexible layout, complete the horizontal, turn, and tilt transport.
- Stable and smooth conveying.
- no relative movement between material and conveyor.
- Low noise, low vibration, avoid damage to the products.
- Modular design, easy assembly, large conveying capacity.
- Conveyor with simple structure, easy for maintenance.
| Conveyor Form | Curve Roller Conveyor | ||
| Roller Data | Valid Roller Width(mm) | 300, 350, 400, 500, 600, 1000 | |
| Roller Material | Roller Tube | Galavanized CA, Stainless Steel | |
| Sprocket | Carbon Steel | ||
| Conveyor Data | Frame Material | Carbon Steel Painted | |
| Conveyor Width(mm) | 400 ~ 1200 ( Other to be Customized) | ||
| Conveyor Height(mm) | ≥500 ( Other to be Customized) | ||
| Turning Radius r(mm) | 400, 600, 800 | ||
| Speed(m/min) | ≤ 30 | ||
Curved Roller Conveyor uses cone rollers as the carrier, which can transport the products along the curve smoothly. There are single-chain drives and double-chain drives. It plays an important role in turning part of the whole conveying line, as a transition part. The turning degrees could be 45°,90°，180°, or other customized ones.
