8 Outfeeds Modular Design Pivot Wheel Sorter
Product Description:
Applications:
Product Description:

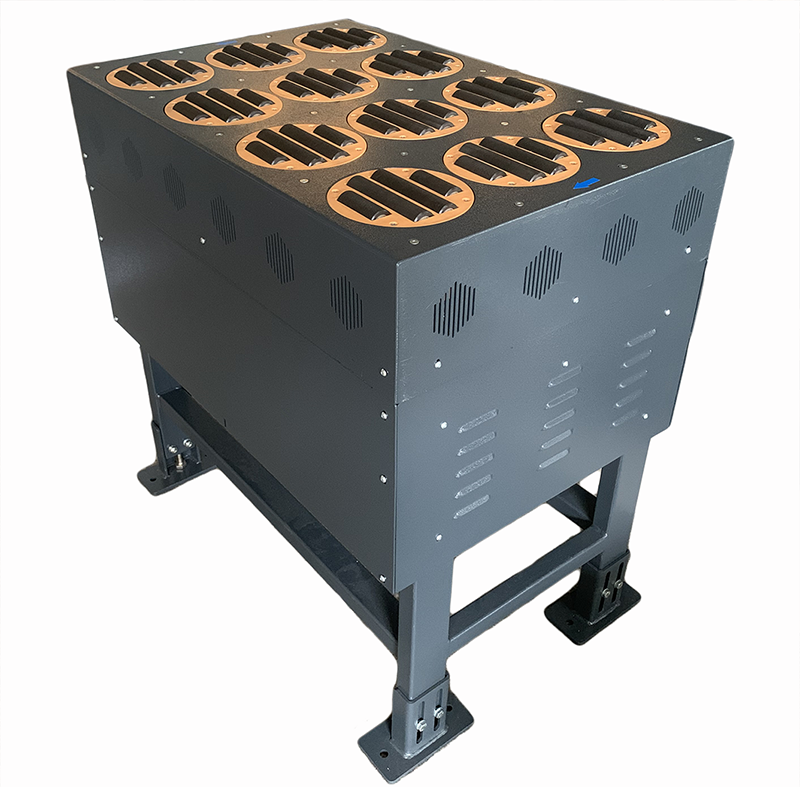

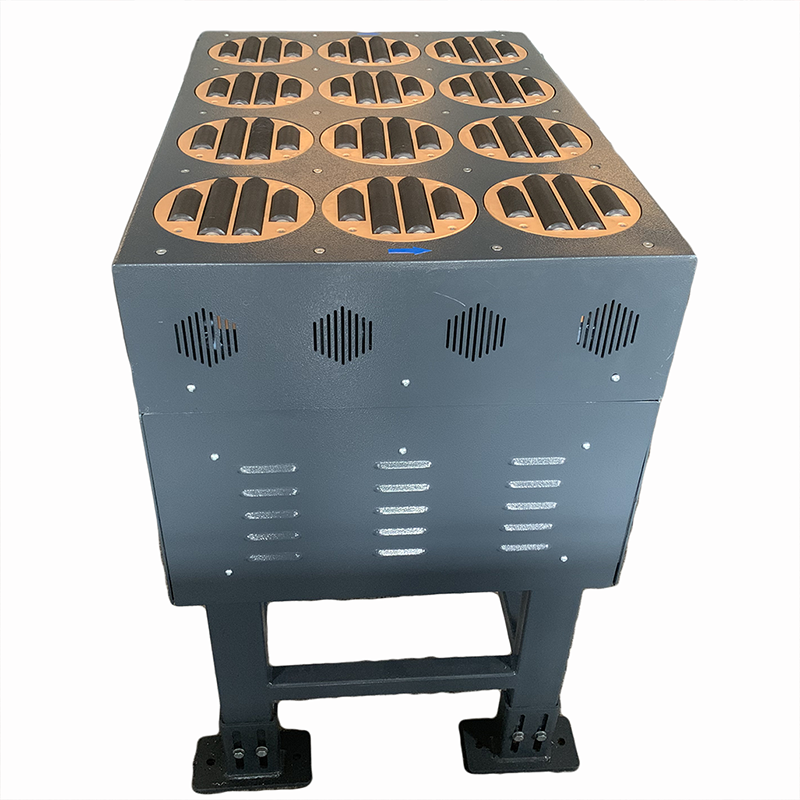

Electrical Friction Wheel Sorter is mainly designed for sorting goods according to specific standards and instructions of customers. Consisting of sorting wheels, synchronous transmission controller, transmission device, rack, etc., it could help customers achieve maximum sorting rate and, at the same time get the best economical efficiency.
Applications:
Widely used in Logistics, Warehouses, E-commerce, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plants, Food and beverage Factory, Farms, Retail, Food Shops, and Express industries.
NEWS & EVENTS
- Tel: 0086 153 1780 2273
- Email: info@smartconvey.com
- Mon-Fri 9:00AM - 7:00PM
Advantages:
- High Sorting Speed
- High Sorting Accuracy
- Low Noise
- Energy Conservation and Environmental Protection
- Flexible and Stable Sorting Operation
- Easy for layout and maintenance
| Basic Information | |
| Model | Electrical Friction Wheel Sorter |
| Frame Material | Carbon Steel Coated |
| Color | Orange/Blue/Black/Gray/White/Customized |
| Dimensions(L*W*H) | SC-600EFS: 621*680*800mm |
| SC-C324EFS: 814*680*800mm | |
| SC-800EFS: 814*880*800mm | |
| SC-C435EFS: 1030*880*800mm | |
| SC-1000EFS: 1030*1080*800mm | |
| SC-C546EFS: 1200*1080*800mm | |
| SC-1200EFS: 1200*1280*800mm | |
| Performance | |
| Conveying Speed | 60~120m/min(Adjustable) |
| Sorting Capacity | 7200pcs/hour(Max) |
| Diverting Angle | 30~90 Degree |
| Discharge Direction | Right, Left and Forward |
| Operating Temperature | -10~40℃ |
| Electrical | 1-phase 115/230VAC, 50/60HZ |
| Interface Options | RS485/232, Ethernet, IO |
| Max Loading Weight | 70kg/㎡ |
| Noise | Less than 75dB |
Electrical Friction Wheel Sorter is mainly designed for sorting goods according to specific standards and instructions of customers. Consisting of sorting wheels, synchronous transmission controller, transmission device, rack, etc., it could help customers achieve maximum sorting rate and, at the same time get the best economical efficiency. Wheel sorter is most commonly used in logistics, e-commerce, and other related industries including the sorting process.
- High Sorting Speed
- Every wheel has a separate powered electrical roller
- Bidirectional sorting on both sides

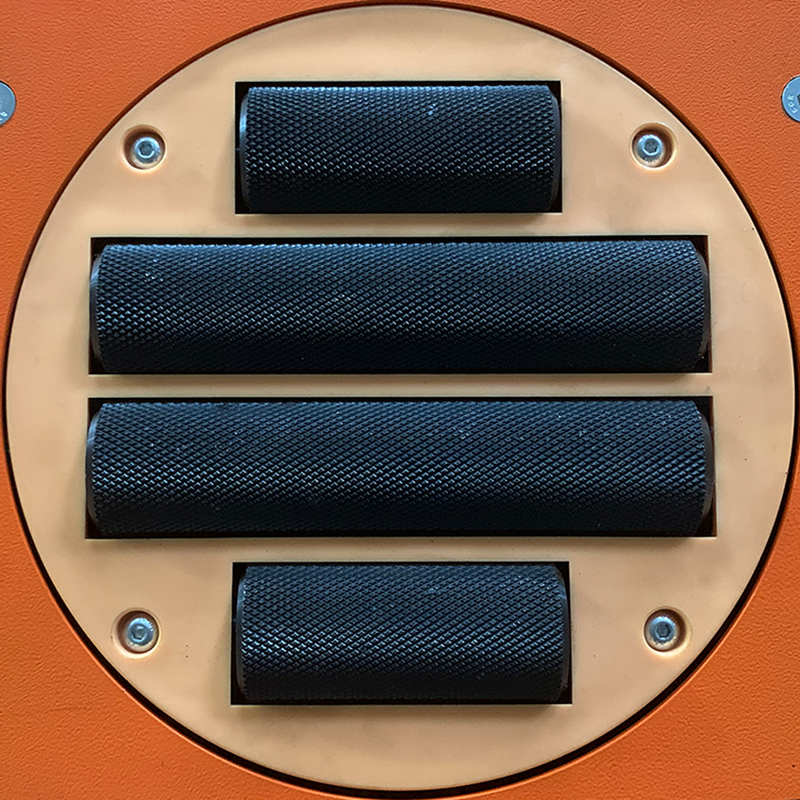

- Polyurethane-coated wheels provide enough drive to minimize the loss in speed during divert
- Maximum sorting rate can reach 7200pcs/hour
- High Sorting Accuracy
- Sorting Accuracy could reach as high as 99%
- Sorting is fast and accurate
- Pneumatic steering and motor mechanical steering are optional to ensure the accuracy of the transmission
- Low requirements on the shape of goods
- Different goods can be partitioned so that they can be distributed separately and have very little impact on goods during sorting
- Small impact on commodities
- Goods sorting size, and specifications are not bound, sorting is convenient. do not harm the goods.
